Hirose Electric Co Ltd DF20A-30DS-1C

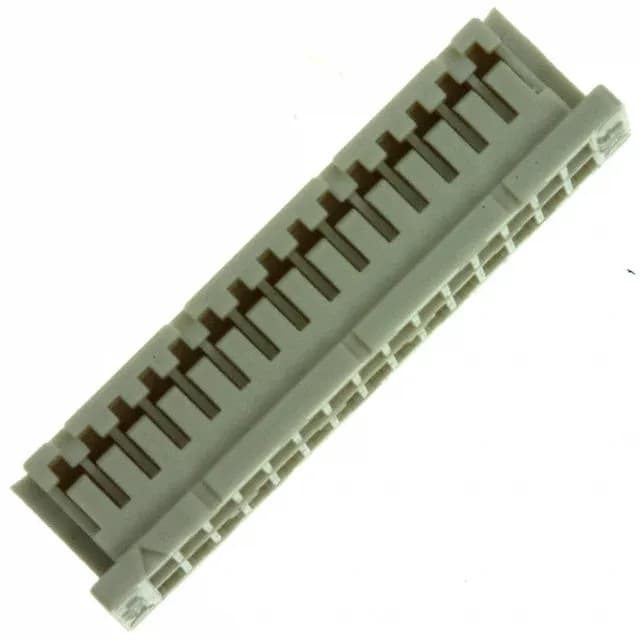

Hirose DF20A-30DS-1C Receptacle Housing, 30 Position

MPN DF20A-30DS-1C
Active

Hirose DF20 series receptacle housing, DF20A-30DS-1C, 30 positions, 2 rows, 0.039" (1.00mm) pitch, crimp termination, free-hanging, beige PA nylon, contacts not included.

$0.4200 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesDF20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

DF20A-30DS-1C specifications
ParameterValue
SeriesDF20
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-35°C ~ 85°C
ColorBeige
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.039\" (1.00mm)
PackageBulk
Row spacing0.039\" (1.00mm)
Rows2
Contact terminationCrimp
Positions30

Product details

30-Position, 1.00 mm Pitch Receptacle Housing for Wire-to-Board Harnesses

The beige polyamide (PA) nylon body is rated for an operating temperature range of -35°C to 85°C.

Crimp Termination — Contacts Ordered Separately

This is a housing-only part: contacts are not included. The crimp termination allows field-installable wire assembly. Mates with the matching DF20 series pin header — confirm the header part number and position count match this 30-position receptacle.

MPN
DF20A-30DS-1C
