Hirose DF22L-2P-7.92DSA(05), 25 A, 1000 V, 7.92 mm
MPNDF22L-2P-7.92DSA(05)
Obsolete

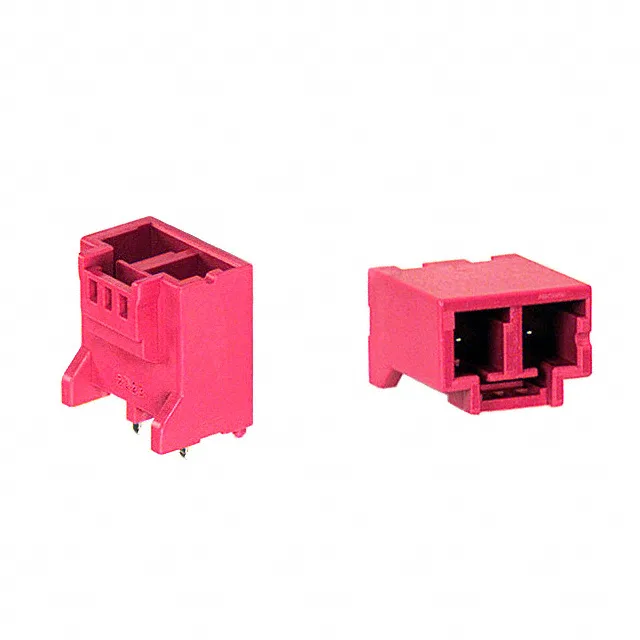

Hirose EnerBee DF22 board-to-cable header, 2 positions, 7.92 mm pitch, 25 A per circuit at 1000 V. Tin-plated copper alloy male pin, through-hole solder termination, shrouded 4-wall with latch holder and board guide. UL94 V-0 rated.
$0.6500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EnerBee™ DF22 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 1000V |
| Current rating | 25A |
| Operating temperature | -35°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Red |
| Insulation height | 0.713\" (18.10mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 25.7mm, 28.7mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.312\" (7.92mm) |
| Positions | 2 |
| Contact length - post | 0.146\" (3.70mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.354\" (9.00mm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
Frequently asked questions
What is the connector style and series of this part?
The DF22L-2P-7.92DSA(05) is a board-to-cable/wire header in Hirose's EnerBee DF22 series, a power-rated connector family designed for industrial power-distribution interconnects.
What voltage and current ratings define this connector?
Rated 1000 V and 25 A per circuit at a 7.92 mm pitch — the combination of voltage and current marks this as a power distribution header, not a signal connector, and the pitch spacing is the key dimension for footprint and routing density decisions.
