Hirose DF22L-2P-7.92DS(66) Header 2-Pos 7.92mm Pitch 25A
MPNDF22L-2P-7.92DS(66)
Obsolete

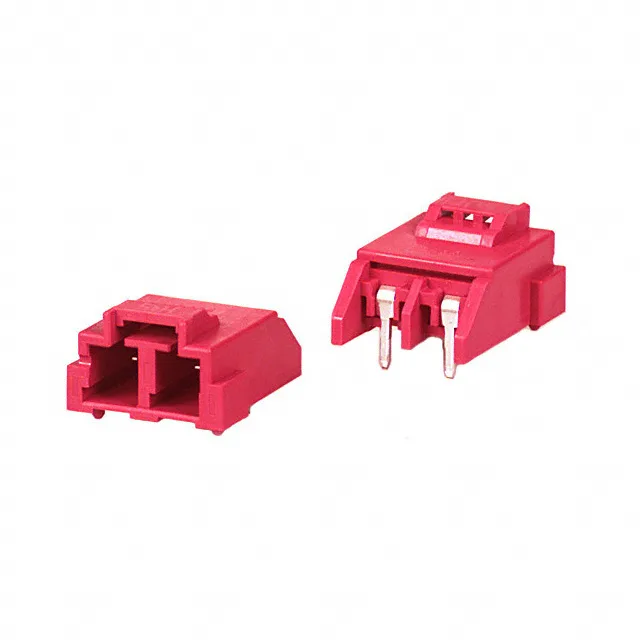

Hirose EnerBee DF22, 2-position single-row male header, 0.312 in (7.92 mm) pitch, board-to-wire style, right-angle through-hole, 25 A, 1000 V, tin-plated contacts, latch holder, UL94 V-0 PA/nylon housing.
$0.4100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EnerBee™ DF22 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 1000V |
| Current rating | 25A |
| Operating temperature | -35°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Red |
| Insulation height | 0.480\" (12.20mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.312\" (7.92mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.146\" (3.70mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.354\" (9.00mm) |
Frequently asked questions
What does the DF22L-2P-7.92DS(66) mate with?
It is a board-to-cable male header; the matching half is the corresponding Hirose DF22 wire-to-board or cable-side receptacle housing and terminals that accept the 0.354 in (9.00 mm) mating length of the header pin. Confirm the receptacle position count and pitch match before specifying.
