Hirose DF22L-5P-7.92DS(05) Header 5-Pos 22A 1000V
MPNDF22L-5P-7.92DS(05)
Obsolete

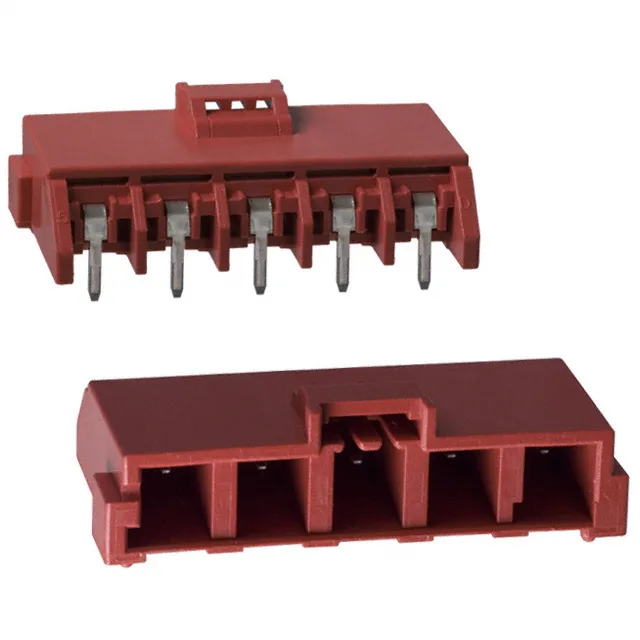

Hirose EnerBee DF22 board-to-wire header, 5 positions, single row, 0.312in (7.92mm) pitch, right-angle through-hole, rated 22A per circuit at 1000V, tin-copper mating finish, latch-holder fastening, 4-wall shrouding, UL94 V-0 nylon housing, -35 to 85°C operating.
$0.7100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EnerBee™ DF22 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 1000V |
| Current rating | 22A |
| Operating temperature | -35°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Red |
| Insulation height | 0.480\" (12.20mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.312\" (7.92mm) |
| Positions | 5 |
| Contact length - post | 0.146\" (3.70mm) |
| Contact finish - mating | Tin-Copper |
| Contact length - mating | 0.354\" (9.00mm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
Frequently asked questions
What is the style of the DF22L-5P-7.92DS(05)?
The listed style is Board to Cable/Wire, confirming it is a header intended for the board side of a wire-to-board or cable-to-board harness assembly.
What does the DF22L-5P-7.92DS(05) mate with?
As a latch-holder shrouded male header, it mates with the matching EnerBee DF22 receptacle housing on the wire/cable side. Confirm the housing order code against the DF22 series datasheet before specifying the mating half.
