Hirose DF22R-3P-7.92DS(05) Header 7.92mm 25A

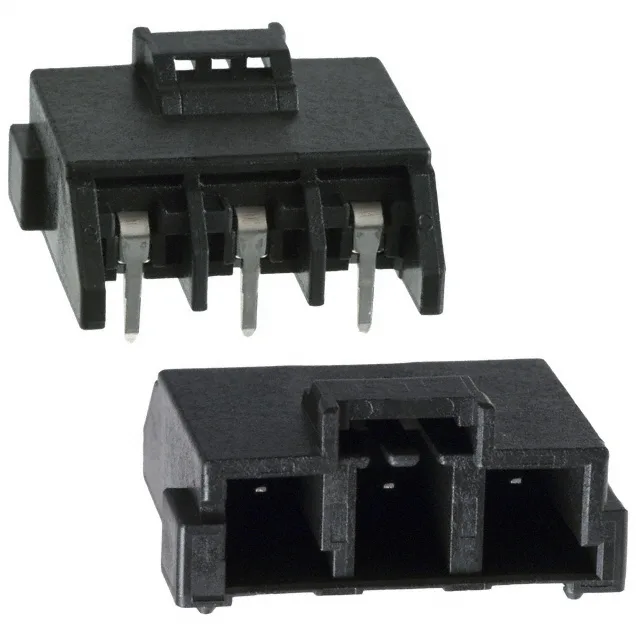

Hirose EnerBee DF22 board-to-wire header, 3 positions, 7.92mm pitch, 25A per circuit at 1000V, tin-copper plated square male pins, right-angle through-hole mount, 4-wall shrouded with latch holder, UL94 V-0 polyamide housing, -35 to 85°C operating range, bulk pack.
Specifications
| Parameter | Value |
|---|---|
| Series | EnerBee™ DF22 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 1000V |
| Current rating | 25A |
| Operating temperature | -35°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.480\" (12.20mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.312\" (7.92mm) |
| Positions | 3 |
| Contact length - post | 0.146\" (3.70mm) |
| Contact finish - mating | Tin-Copper |
| Contact length - mating | 0.354\" (9.00mm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
Frequently asked questions
What replaces the DF22R-3P-7.92DS(05)?
No official successor order code appears in the Hirose record for this part. The sourcing path is broker or last-time-buy stock; confirm any remaining lot dates before designing around inventory availability.
What are the key ratings that drive selection?
The 7.92 mm pitch and 3-circuit count define the BOM line; 25 A per circuit at 1000 V covers mid-power industrial bus and supply rails; tin-copper plating at 39.4 µin (1.00 µm) supports power-reconnection duty without the high-cycle gold requirement; the UL94 V-0 PA nylon housing sets the -35 to 85 °C operating envelope.
