Hirose DF22R-5P-7.92DSA(05) Header 5-Pos 7.92mm 22A
MPNDF22R-5P-7.92DSA(05)
Obsolete

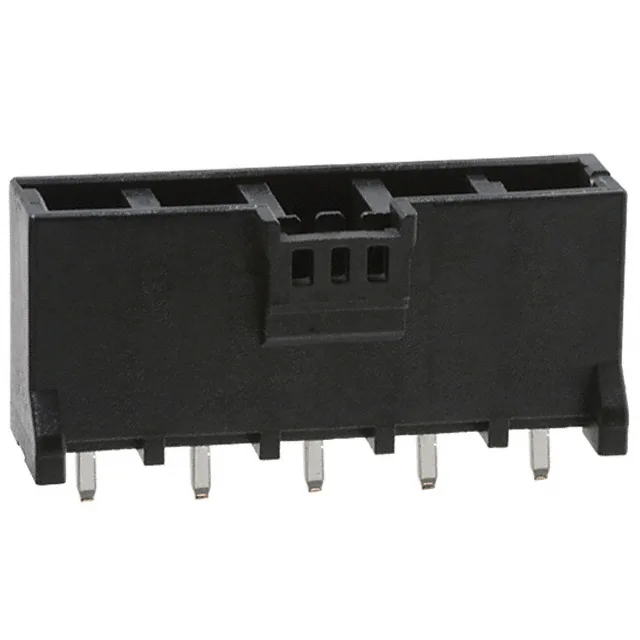

Hirose EnerBee DF22 board-to-wire header, 5 positions × 1 row, 0.312 in (7.92 mm) pitch, male pin through-hole, tin-copper mating contact (39.4 µin), rated 22 A per circuit at 1000 V, shrouding 4-wall with latch holder, UL94 V-0 polyamide body, operating −35 °C to 85 °C.
$0.6500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EnerBee™ DF22 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 1000V |
| Current rating | 22A |
| Operating temperature | -35°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.713\" (18.10mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 25.7mm, 28.7mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.312\" (7.92mm) |
| Positions | 5 |
| Contact length - post | 0.146\" (3.70mm) |
| Contact finish - mating | Tin-Copper |
| Contact length - mating | 0.354\" (9.00mm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
Frequently asked questions
What is the DF22R-5P-7.92DSA(05) listed style?
Board to Cable/Wire, confirmed in the spec ledger.
What series does this header belong to?
EnerBee DF22, Hirose Electric's power-rated board-to-wire connector series.
What compliance rating does the housing carry?
The polyamide body is rated UL94 V-0 for flammability.
What does the DF22R-5P-7.92DSA(05) mate with?
It accepts the matching DF22 socket housing in the same series; the four-wall shroud and latch-holder fastening define the mechanical retention class for wire-to-board harness assemblies.
