Hirose DF22R-5P-7.92DS(05) Header 5-Pos 7.92mm 22A 1000V
MPNDF22R-5P-7.92DS(05)
Obsolete

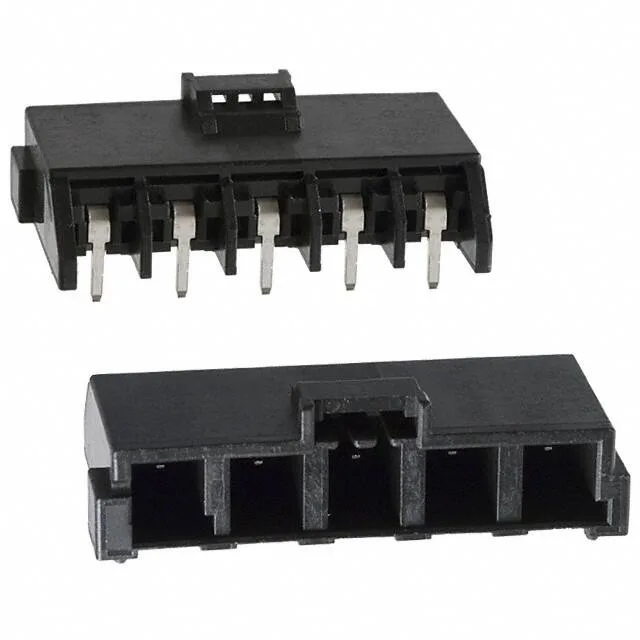

Hirose EnerBee DF22, 5 positions, 0.312 inch (7.92 mm) pitch, male pin header, right-angle through-hole, board-to-wire, rated 22 A per circuit, 1000 V, tin-copper contact plating (39.4 µin), UL94 V-0 polyamide insulator, -35°C to 85°C, shrouded 4-wall with latch holder.
$1.4300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | EnerBee™ DF22 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 1000V |
| Current rating | 22A |
| Operating temperature | -35°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.480\" (12.20mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.312\" (7.92mm) |
| Positions | 5 |
| Contact length - post | 0.146\" (3.70mm) |
| Contact finish - mating | Tin-Copper |
| Contact length - mating | 0.354\" (9.00mm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
Frequently asked questions
What voltage and current can this header carry?
Rated 1000 V and 22 A per circuit — the voltage ceiling is the distinguishing spec against lower-rated DF22 variants; current is a per-contact figure on tin-copper plating.
What series does this part belong to?
Hirose EnerBee DF22 — a board-to-wire header family sized for power-distribution and industrial automation node connections.
