Hirose Electric Co Ltd DF23C-20DP-0.5V(92) — Mezzanine & Stacking Connectors
Hirose Electric Co Ltd

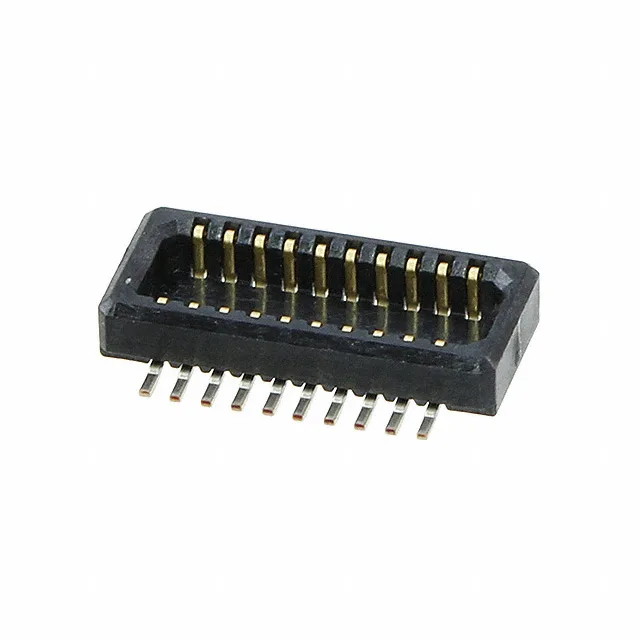

Hirose DF23C-20DP-0.5V(92) Plug, 20 pos, 0.50mm pitch

MPNDF23C-20DP-0.5V(92)
Active

Hirose DF23 series, 0.020" (0.50mm) Pitch Connector, Plug, Outer Shroud Contacts, 20 Position, 2 Row, Surface Mount, Gold, 0.047" (1.20mm) Height Above Board.

$0.4091Ref. price · indicative, final on quote
DF23C-20DP-0.5V(92) datasheet
StockIn Stock (31)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DF23C-20DP-0.5V(92) Technical Specifications
ParameterValue
SeriesDF23
MountingSurface Mount
Connector typePlug, Outer Shroud Contacts
Height above board0.047\" (1.20mm)
Mated stacking heights1.5mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
Contact finishGold
Rows2
Positions20

Product details

0.50mm Pitch, 20-Position Plug for Board-to-Board FFC/FPC

The Hirose DF23C-20DP-0.5V(92) is a 20-position plug with outer shroud contacts, part of the DF23 series of fine-pitch board-to-board connectors. Gold plating on the contacts ensures reliable signal integrity over repeated mating cycles.

The plug sits 1.20mm above the board surface and mates to a complementary receptacle to achieve a total mated stacking height of 1.5mm. That 1.5mm z-height is the dimension to design into your enclosure gap — the plug alone does not define the clearance. The matching receptacle is the DF23C-20DS-0.5V(51), a 20-position, center-strip-contact receptacle with a 1.45mm board height.

Position Count vs. Sibling Variants

The DF23C-20DP-0.5V(92) carries 20 positions. The same-pitch, same-height sibling DF23C-30DP-0.5V(92) carries 30 positions, and the DF23C-10DP-0.5V(91) carries 10. All three share the 0.50mm pitch, 1.20mm board height, gold contacts, and dual-row outer-shroud plug format.

Frequently asked questions

What is the mating receptacle for DF23C-20DP-0.5V(92)?

The mating receptacle is the Hirose DF23C-20DS-0.5V(51), a 20-position, center-strip-contact receptacle with a 1.45mm board height.

Is DF23C-20DP-0.5V(92) RoHS compliant?

Yes, the DF23C-20DP-0.5V(92) is ROHS3 compliant.

What is the mated stacking height of DF23C-20DP-0.5V(92)?

The mated stacking height is 1.5mm when mated with the matching receptacle.
