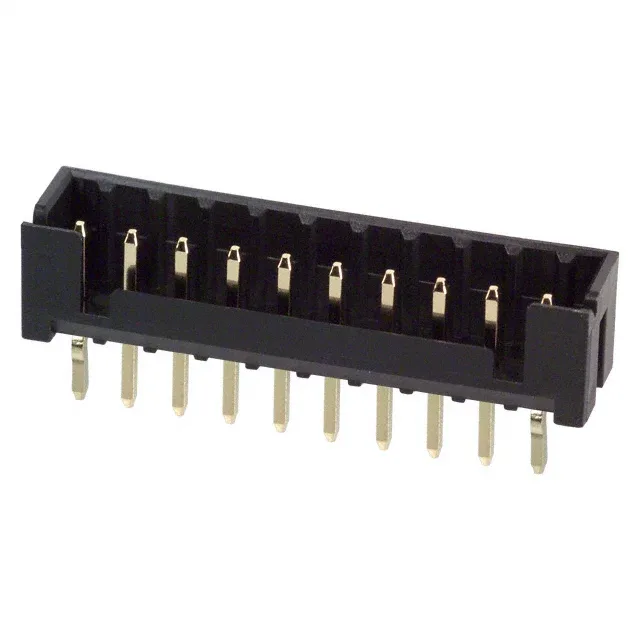

CONN HEADER VERT 10POS 2MM
$1.1100Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | DF3 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Contact length - post | 0.114\" (2.90mm) |
| Overall contact length | 0.299\" (7.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.122\" (3.10mm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
Sourcing this connector
Hirose Electric Co Ltd DF3-10P-2DSA(01) is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Hirose Electric Co Ltd and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
