Hirose Electric Co Ltd DF3-2S-2C — Connector Housings

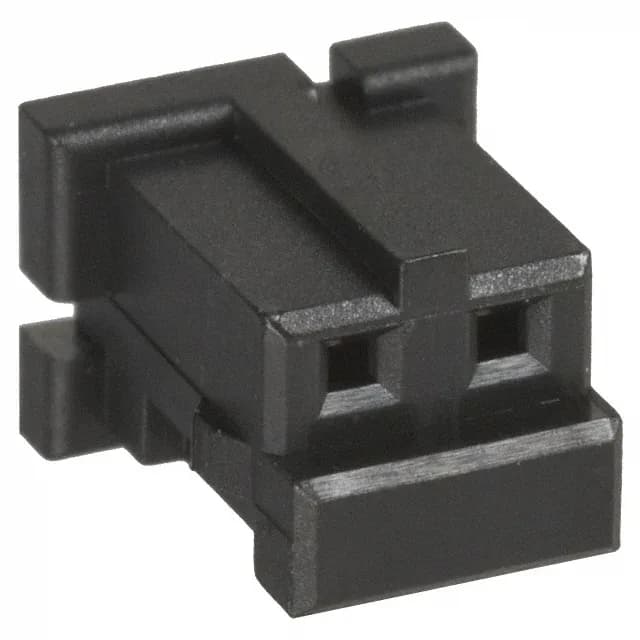

Hirose DF3-2S-2C Receptacle Housing, 2 Pos, 2.00mm

MPNDF3-2S-2C
Active

Hirose DF3 series receptacle housing, 2 positions, 2.00mm pitch, single row, female socket, crimp termination, free-hanging, black, bulk.

$0.1100Ref. price · indicative, final on quote
Hirose Electric Co Ltd DF3-2S-2C datasheet (PDF)
RoHSROHS3 Compliant
SeriesDF3
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

DF3-2S-2C specifications
ParameterValue
SeriesDF3
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions2

Product details

2-Position Receptacle Housing for the DF3 Series

The Hirose DF3-2S-2C is a 2-position receptacle housing in the DF3 series, designed for wire-to-board crimp termination.

This is standard for Hirose DF3 housings; the terminal part number is not the same as the housing code. Confirm the correct crimp terminal gauge for your wire size before the BOM is locked.

Mates with the DF3 Series Pin Header

The header is a through-hole or SMT board-mount part — the housing slides over the header pins and latches. The single-row layout keeps the mated pair narrow, useful for tight wire-routing along a board edge.

Frequently asked questions

Does the DF3-2S-2C include contacts?

No, the DF3-2S-2C ships as an empty housing — contacts are not included. The crimp terminals for the DF3 series must be ordered separately.

What is the pitch of the DF3-2S-2C?

The DF3-2S-2C uses a 2.00 mm pitch, which matches the mating DF3 series pin header and determines the board footprint.

Is the DF3-2S-2C RoHS compliant?

Yes, the DF3-2S-2C is ROHS3 compliant.
