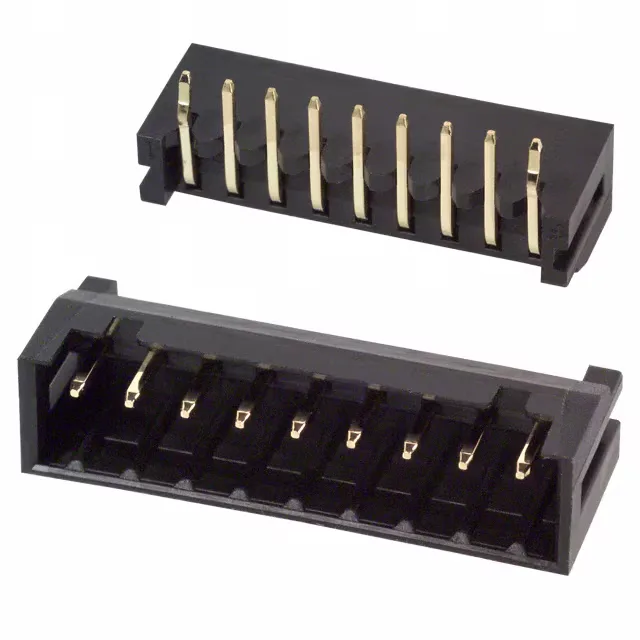

Hirose Electric Co Ltd DF3-9P-2DS(01)
MPNDF3-9P-2DS(01)
Active
CONN HEADER R/A 9POS 2MM
$1.2300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDF3
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DF3 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -55°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 9 |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.122\" (3.10mm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
