Hirose Electric Co Ltd DF30FC-24DS-0.4V(82) — Mezzanine & Stacking Connectors
Hirose Electric Co Ltd

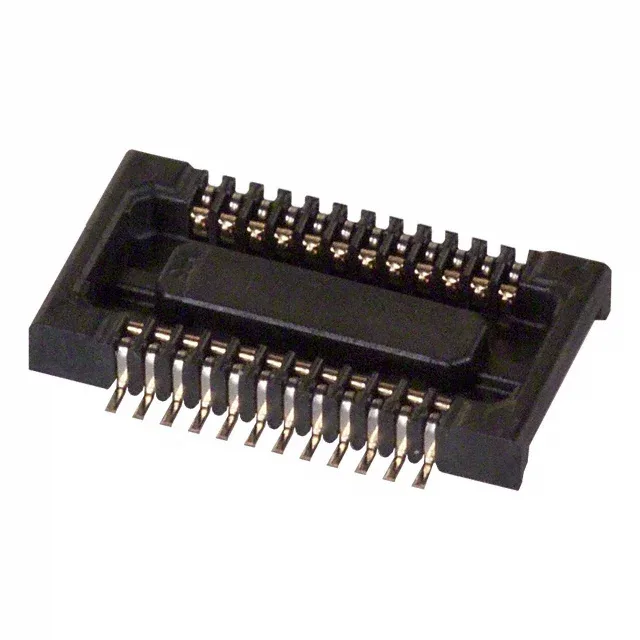

Hirose DF30FC-24DS-0.4V(82) Receptacle, 24 Pos, 0.40mm Pitch

MPNDF30FC-24DS-0.4V(82)
Active

Hirose DF30 series receptacle, outer shroud contacts, 24 positions, 2 rows, 0.016" (0.40mm) pitch, surface mount, gold contact finish 2.00µin, 0.035" (0.88mm) height above board, mated stacking height 0.9mm, Tape & Reel.

$1.1700Ref. price · indicative, final on quote
DF30FC-24DS-0.4V(82) datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DF30FC-24DS-0.4V(82) Technical Specifications
ParameterValue
SeriesDF30
MountingSurface Mount
Connector typeReceptacle, Outer Shroud Contacts
Height above board0.035\" (0.88mm)
Mated stacking heights0.9mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
Contact finishGold
Rows2
Positions24
Contact finish thickness2.00µin (0.051µm)

Product details

The Hirose DF30FC-24DS-0.4V(82) is a 24-position receptacle from the DF30 series, designed for board-to-board mezzanine stacking in compact portable electronics.

The receptacle itself sits 0.88mm above the board surface, so the total stack from bottom PCB to top PCB is that 0.9mm mated height, not the sum of both heights.

Comparing the 24-Position to the 20-Position Sibling

The DF30FC-24DS-0.4V(82) carries 24 positions against the 20 positions of the DF30FC-20DS-0.4V(82) at the same 0.40mm pitch and 0.9mm mated height. The extra four circuits increase the signal density across the same board footprint width — the connector body is longer to accommodate the additional contacts, so verify the mechanical envelope against your PCB edge clearance if you're swapping between position counts.

Frequently asked questions

Where can I buy DF30FC-24DS-0.4V(82) and get a price?

Submit a quote request for current pricing and availability — no stock-holding claim is made on this page.

What is the mated stacking height for DF30FC-24DS-0.4V(82)?

The mated stacking height is 0.9mm, which sets the gap between the two PCBs when the connector pair is fully mated.

Is DF30FC-24DS-0.4V(82) equivalent to DF30FC-24DS-0.4V(81)?

The DF30FC-24DS-0.4V(81) shares the same pitch, position count, height, and gold plating — the difference is in the packaging suffix, which may affect reel or cut-tape format. Functionally they are the same connector for board layout purposes.
