Hirose DF30 series receptacle, outer shroud contacts, 50 positions, 0.016" (0.40mm) pitch, dual-row, surface mount, gold-plated contacts, 0.88mm height above board.
| Parameter | Value |
|---|---|
| Series | DF30 |
| Mounting | Surface Mount |
| Connector type | Receptacle, Outer Shroud Contacts |
| Height above board | 0.035\" (0.88mm) |
| Mated stacking heights | 0.9mm |
| Pitch | 0.016\" (0.40mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 50 |
| Contact finish thickness | 2.00µin (0.051µm) |

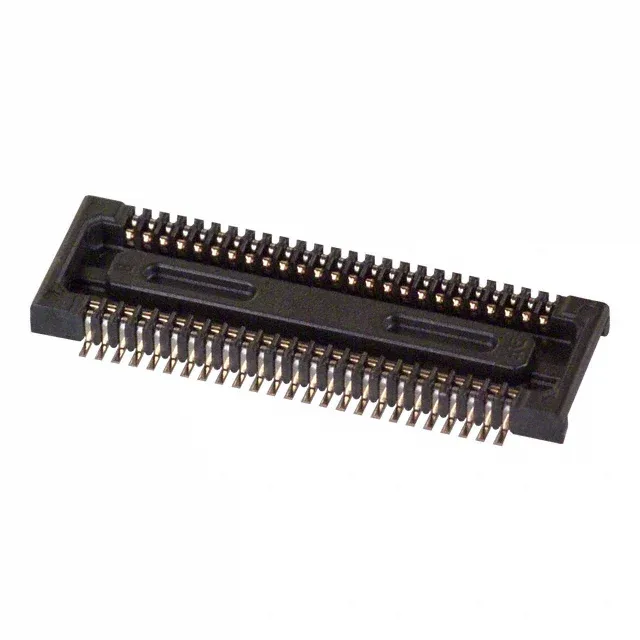

The Hirose DF30FC-50DS-0.4V(81) is a 50-position receptacle from the DF30 series, designed for board-to-board mezzanine stacking. The mated stacking height is 0.9mm, and the height above board is 0.035" (0.88mm) — a tight z-profile for compact portable electronics, LCD panels, or handheld devices where the board gap is under a millimeter.
The mated stacking height is 0.9mm, with a height above board of 0.035" (0.88mm). This sets the gap between the two PCBs when the receptacle is mated with its matching header.
The pitch is 0.016" (0.40mm), a fine-pitch spacing suited for high-density board-to-board interconnects in compact electronics.
