70-Position, 0.40 mm Pitch Mezzanine Receptacle

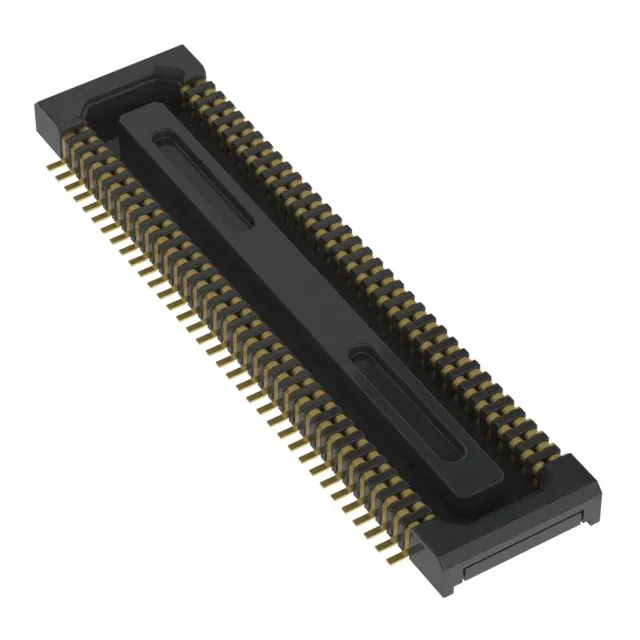

The Hirose DF30FC-70DS-0.4V(82) is a 70-position receptacle with outer shroud contacts from the DF30 series, designed for board-to-board mezzanine stacking in space-constrained portable electronics. Its 0.016" (0.40mm) pitch and dual-row layout pack 70 circuits into a compact footprint, while the 0.035" (0.88mm) height above board and 0.9mm mated stacking height suit thin-profile assemblies like smartphones, wearables, and module-on-board interconnects. Gold-plated contacts with 2.00µin (0.051µm) thickness provide corrosion resistance for the expected mating cycle count in a sealed consumer device.
Pitch and Stack Height Drive the Fit
The 0.016" (0.40mm) pitch is the tightest in the DF30 family — it forces fine-line PCB routing and limits per-contact current to signal-level duty (no power delivery through this connector). The 0.035" (0.88mm) above-board profile means the receptacle sits flush with low-profile components, but the solder joints are small — reflow profile and stencil aperture need tuning for the 0.40mm pitch.
Position Count — 70 vs 80 Circuits
