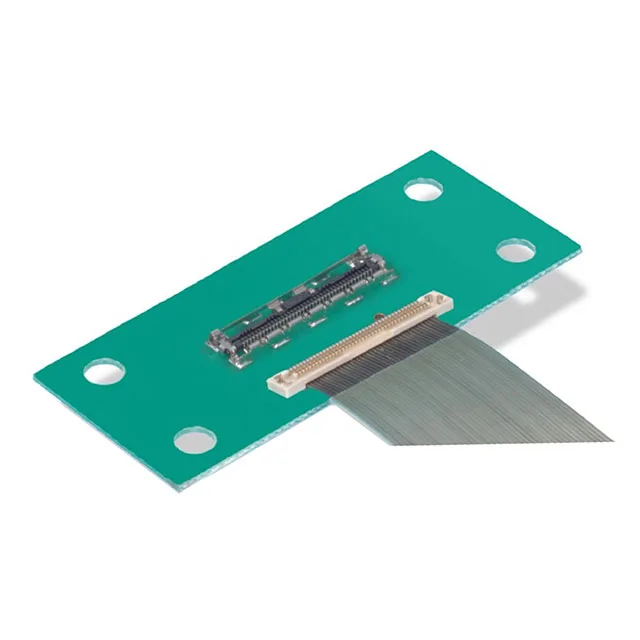

CONN RCPT 15POS 0.016 GOLD SMD
$1.3900Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | DF36 |
| Type | Center Strip Contact |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 30VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -35°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Halogen Free |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Rows | 1 |
| Pitch | 0.016\" (0.40mm) |
| Positions | 15 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 3.90µin (0.099µm) |
| Contact finish thickness - mating | 12.0µin (0.30µm) |
Sourcing this connector
Hirose Electric Co Ltd DF36-15S-0.4V(51) is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Hirose Electric Co Ltd and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
