Hirose Electric Co Ltd DF37NC(1.5)-30DS-0.4V(53) — Mezzanine & Stacking Connectors
Hirose Electric Co Ltd

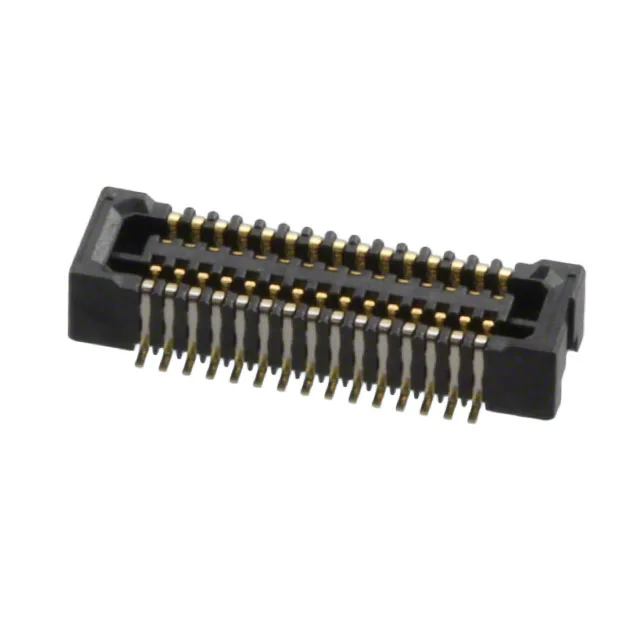

Hirose DF37NC(1.5)-30DS-0.4V(53) Receptacle, 30 Pos

MPNDF37NC(1.5)-30DS-0.4V(53)
Active

Hirose DF37 series receptacle, center strip contacts, 30 positions, 0.016" (0.40mm) pitch, dual-row, surface mount, gold contact finish, 1.5mm mated stacking height.

$0.8500Ref. price · indicative, final on quote
DF37NC(1.5)-30DS-0.4V(53) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DF37NC(1.5)-30DS-0.4V(53) Technical Specifications
ParameterValue
SeriesDF37
MountingSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.059\" (1.50mm)
Mated stacking heights1.5mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
Contact finishGold
Rows2
Positions30

Product details

Board-Stacking Selection: 1.5mm Mated Height, 0.40mm Pitch

The Hirose DF37NC(1.5)-30DS-0.4V(53) is a 30-position receptacle from the DF37 series, designed for parallel board-to-board stacking at a fixed 1.5mm mated height. The 0.016" (0.40mm) pitch and dual-row layout pack 30 circuits into a compact footprint — typical for smartphone, tablet, and wearable PCBA stacking where z-height is tight.

What the 1.5mm Stack Height Means for Your Board Stack-Up

The 1.5mm mated stacking height is the dimension between the top of the bottom board and the bottom of the top board when mated. That 1.5mm envelope includes the connector body height plus the clearance for the mating header — no additional standoffs needed. If your design has a tighter or looser z-budget, the DF37 series offers other stack height variants; this specific suffix (1.5) locks the height at 1.5mm.

This receptacle mates with the corresponding DF37 series header (the plug side) at the same 0.40mm pitch and 1.5mm stack height. Both halves use surface-mount termination — no through-hole soldering.

Frequently asked questions

What is the mated stacking height of DF37NC(1.5)-30DS-0.4V(53)?

The mated stacking height is 1.5mm — the distance between the two parallel PCBs when the receptacle is mated with the matching DF37 header.

Is DF37NC(1.5)-30DS-0.4V(53) RoHS compliant?

Yes, it is rated ROHS3 compliant, meeting current EU environmental requirements.
