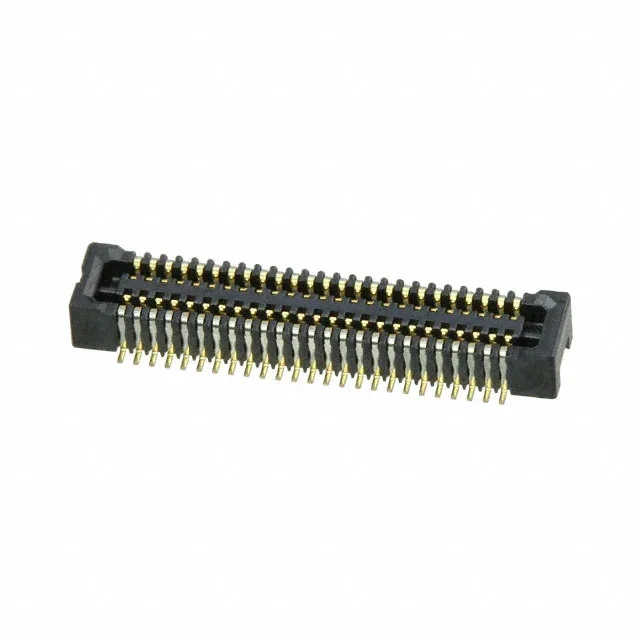

Hirose Electric Co Ltd DF37NC(1.5)-50DS-0.4V(53) — Mezzanine & Stacking Connectors

Hirose DF37NC(1.5)-50DS-0.4V(53) Receptacle, 50 Pos

MPNDF37NC(1.5)-50DS-0.4V(53)
Active

Hirose DF37 series receptacle, center strip contacts, 50 positions, 0.40mm pitch, dual-row, gold-plated, SMT, 1.5mm stacking height, Tape & Reel.

$1.2300Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

DF37NC(1.5)-50DS-0.4V(53) Technical Specifications
ParameterValue
SeriesDF37
MountingSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.059\" (1.50mm)
Mated stacking heights1.5mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
Contact finishGold
Rows2
Positions50

Product details

The Hirose DF37NC(1.5)-50DS-0.4V(53) is a 50-position receptacle from the DF37 series, built for board-to-board mezzanine stacking at a fixed 1.5mm mated height. Gold plating on the contacts suits signal-level duty with repeated mating cycles; this isn't a power interconnect, it's a signal path for a tight z-height budget.

The 0.40mm pitch drives the PCB land pattern — tight enough that the solder mask registration matters between adjacent pads. The 1.5mm stacking height is the only mated height this variant supports; if your board stack needs more clearance, you're looking at a different DF37 height option. The 50-position count matches the BOM circuit count exactly — no spare positions for routing extra signals.

Comparing the 53 suffix against the 51

The DF37NC(1.5)-50DS-0.4V(51) is the closest sibling — same pitch, same 50 positions, same 1.5mm stack height, same gold plating. For a reel-fed pick-and-place line, either works; the 53 is the simpler choice if you don't need the Digi-Reel flexibility.

Frequently asked questions

What is the stacking height of the DF37NC(1.5)-50DS-0.4V(53)?

The mated stacking height is 1.5mm — that's the z-height between the two PCBs when the receptacle mates with its matching header.
