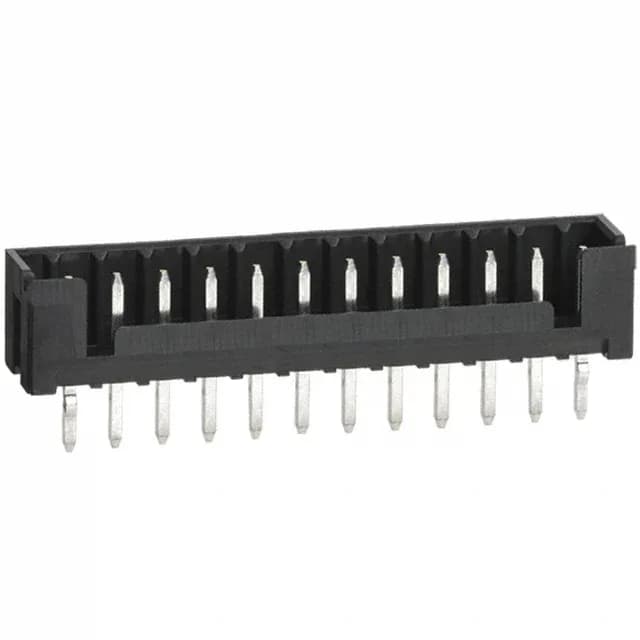

Hirose Electric Co Ltd DF3A-12P-2DSA
MPNDF3A-12P-2DSA
Active
CONN HEADER VERT 12POS 2MM
$0.4200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDF3
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DF3 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Polyamide (PA), Nylon |
| Mated stacking heights | 5mm |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Overall contact length | 0.299\" (7.60mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.122\" (3.10mm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
