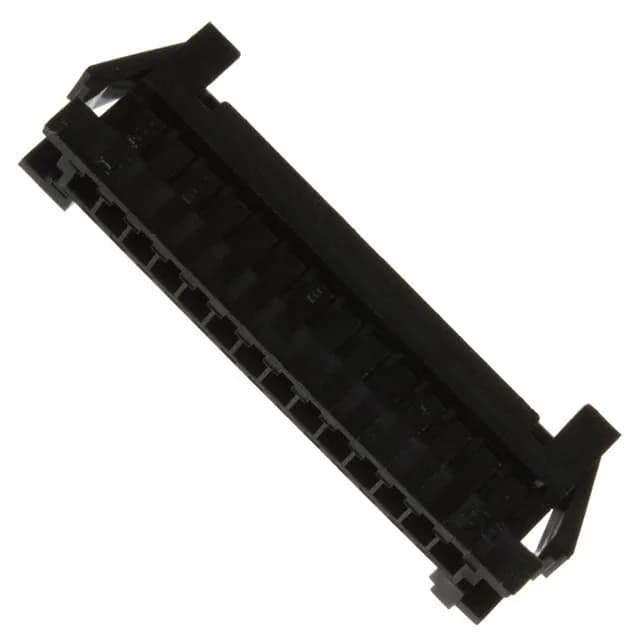

Hirose DF3 series plug housing, DF3AA-14EP-2C, 14 positions, 1 row, 2.00mm pitch, panel mount snap-in, crimp termination, black PA nylon, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | DF3 |
| Type | Male Pin |
| Mounting | Panel Mount, Snap-In |
| Connector type | Plug |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 14 |
The crimp termination requires a matched hand tool or semi-automatic press from Hirose.
This housing mounts via a snap-in panel feature — no screws or additional hardware.
No end-of-life notice or successor part has been issued.
The DF3AA-14EP-2C is a housing only — contacts are not included. It accepts male pin crimp terminals from the Hirose DF3 series, which must be ordered separately.
Yes, the DF3AA-14EP-2C is RoHS compliant.
