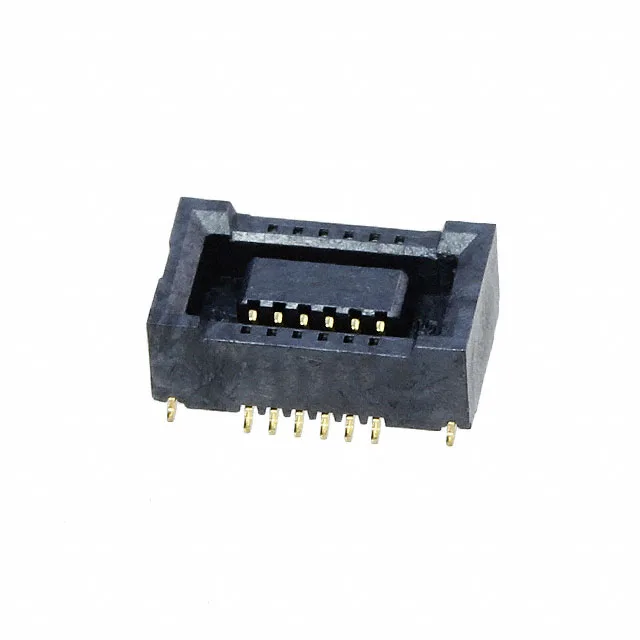

Hirose DF40 series receptacle, center strip contacts, 12 positions, 0.40mm pitch, dual-row, surface mount, gold contact finish, 2mm mated stacking height, solder retention feature.
| Parameter | Value |
|---|---|
| Series | DF40 |
| Mounting | Surface Mount |
| Connector type | Receptacle, Center Strip Contacts |
| Height above board | 0.077\" (1.95mm) |
| Mated stacking heights | 2mm |
| Pitch | 0.016\" (0.40mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 12 |
The Hirose DF40B(2.0)-12DS-0.4V(58) is a 12-position receptacle from the DF40 series, designed for parallel board stacking at a fixed 2mm mated height. The 0.016" (0.40mm) pitch and dual-row layout pack 12 circuits into a compact footprint — the tight pitch demands careful trace routing on the board, but the 2mm stack height gives enough clearance for mid-board components on the underside of the top PCB.
ROHS3 compliant.
The mated stacking height is 2mm, set by the (2.0) suffix in the order code. This is the fixed z-height between the two parallel PCBs when mated with the corresponding DF40 series header.
Yes, it is ROHS3 compliant.
Yes, the connector includes a solder retention feature — board locks that hold the part during reflow and resist shear forces from the mating header.
Yes, it mates with the corresponding DF40 series header of the same position count and stacking height — the 12DS designation indicates a 12-position dual-row receptacle that pairs with the matching 12-position header in the DF40 family.
