Hirose Electric Co Ltd DF40C-100DP-0.4V(51) — Mezzanine & Stacking Connectors
Hirose Electric Co Ltd

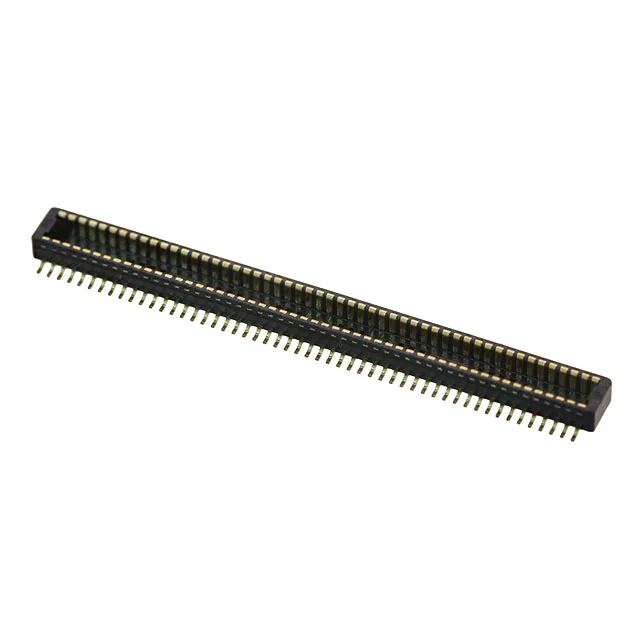

Hirose DF40C-100DP-0.4V(51) Plug, 100 Pos, 0.40mm Pitch

MPNDF40C-100DP-0.4V(51)
Active

Hirose DF40 series, 0.40mm pitch, 100-position plug, outer shroud contacts, surface mount, gold contact finish, 2 rows, solder retention, tape and reel.

$1.7500Ref. price · indicative, final on quote
DF40C-100DP-0.4V(51) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DF40C-100DP-0.4V(51) Technical Specifications
ParameterValue
SeriesDF40
MountingSurface Mount
Connector typePlug, Outer Shroud Contacts
Height above board0.045\" (1.14mm)
Mated stacking heights1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions100
Contact finish thickness2.00µin (0.051µm)

Product details

Board Layout Fit: 0.40mm Pitch and 100 Positions

The Hirose DF40C-100DP-0.4V(51) is a 100-position plug with outer shroud contacts from the DF40 series, designed for board-to-board mezzanine stacking. The 0.016" (0.40mm) pitch on two rows packs 100 circuits into a compact footprint — the tight pitch demands careful trace escape routing and via fanout on the PCB, especially for dense signal layers.

Stack Height Options and Mating Flexibility

This plug supports six mated stacking heights: 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, and 4mm. The height is set by pairing the plug with the matching receptacle (DF40C-100DS-0.4V(51) or equivalent) — the same PCB footprint works across all heights, so you can change board spacing without a layout revision.

For applications requiring frequent field reconnection, a thicker gold layer would be preferable; here the thin flash keeps cost down while maintaining corrosion resistance in the mated state.

Position Count Comparison Across the DF40C Subfamily

Within the DF40C subfamily, the 100-position DF40C-100DP-0.4V(51) sits at the top of the position range.

Frequently asked questions

What is the mating receptacle for DF40C-100DP-0.4V(51)?

The mating receptacle is the DF40C-100DS-0.4V(51) or any DF40C-series 100-position receptacle with the same 0.40mm pitch. The plug and receptacle pair to achieve one of the six supported stack heights.

What are the stack height options available with DF40C-100DP-0.4V(51)?

Six stack heights are supported: 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, and 4mm. The height is determined by the receptacle variant chosen; the plug footprint is common across all.
