Hirose Electric Co Ltd DF40GL-44DS-0.4V(58) — Mezzanine & Stacking Connectors
Hirose Electric Co Ltd

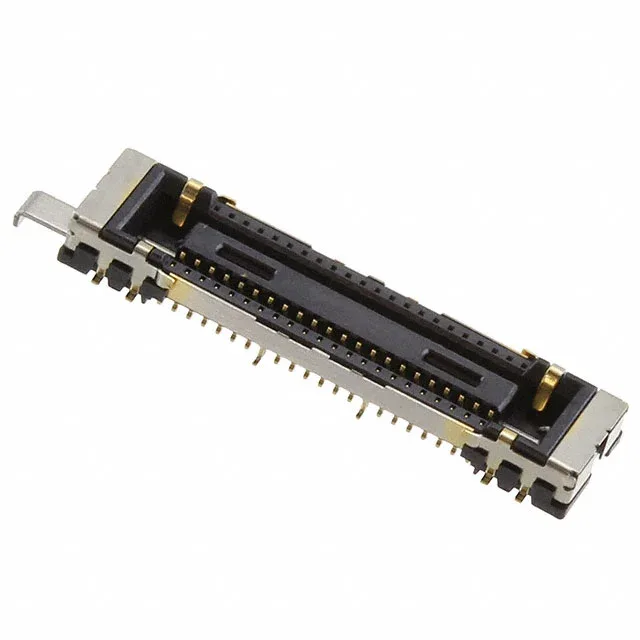

Hirose DF40GL-44DS-0.4V(58) Receptacle, 44 Pos, 0.40mm Pitch

MPNDF40GL-44DS-0.4V(58)
Active

Hirose DF40GL series, 0.40mm pitch, 44 positions, 2-row receptacle, center strip contacts, gold plating, shielded, SMT, 1.5mm stacking height.

$2.4900Ref. price · indicative, final on quote
DF40GL-44DS-0.4V(58) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DF40GL-44DS-0.4V(58) Technical Specifications
ParameterValue
SeriesDF40GL
MountingSurface Mount
Connector typeReceptacle, Center Strip Contacts
Mated stacking heights1.5mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesShielded, Solder Retention
Contact finishGold
Rows2
Positions44
Contact finish thickness1.97µin (0.050µm)

Product details

Board Stacking at 1.5mm with a Shielded 44-Position Receptacle

The Hirose DF40GL-44DS-0.4V(58) is a 44-position, 2-row receptacle with center strip contacts, designed for mezzanine board-to-board stacking at a mated height of 1.5mm. The 0.40mm pitch packs 44 circuits into a compact footprint, but that tight pitch means the board layout needs careful trace routing — the keep-out zone around the footprint is tight, and routing a full 44 signals between two 0.40mm-spaced pads takes a disciplined fan-out. The shielded construction and gold-plated contacts (1.97µin thickness) point to this being used in high-speed or RF signal paths where crosstalk and corrosion resistance matter.

SMT Mounting and Solder Retention

The solder retention tabs on the shield take the shear load from cable or board handling after reflow — they're not just for alignment. The Tape & Reel packaging (Cut Tape also available) feeds into standard pick-and-place lines.

Frequently asked questions

Is DF40GL-44DS-0.4V(58) compatible with DF40 series plugs?

Yes, the DF40GL-44DS-0.4V(58) receptacle mates with the DF40GL-44DP-0.4V(51) or DF40GL-44DP-0.4V(58) header from the same DF40GL series. Both share the same 0.40mm pitch, 44 positions, and 2-row configuration. The 1.5mm mated stack height is fixed by this pair.

What is the stacking height of DF40GL-44DS-0.4V(58)?

The mated stacking height is 1.5mm when paired with the matching DF40GL series header. This is a fixed height — no shimming or adjustment.

Where can I buy DF40GL-44DS-0.4V(58)?

This part is sourced to order through independent distribution. Submit an RFQ for current availability and pricing — confirmed at quote time.
