Hirose Electric Co Ltd DF40HC(3.0)-70DS-0.4V(51) — Mezzanine & Stacking Connectors
Hirose Electric Co Ltd

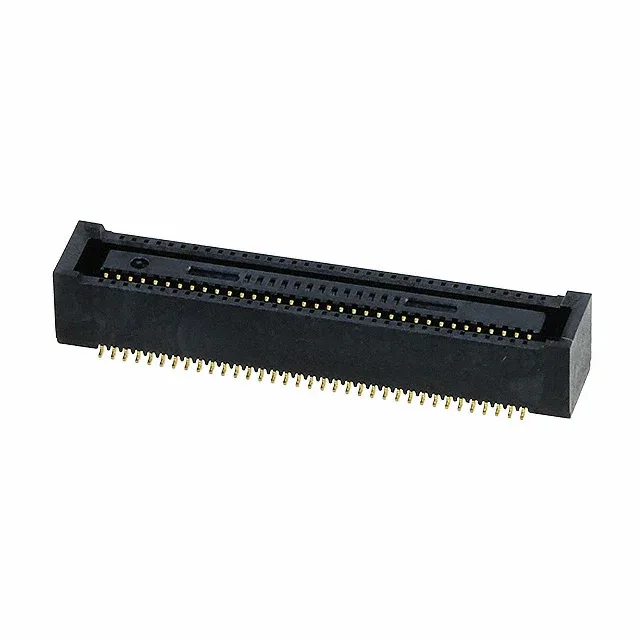

Hirose DF40HC(3.0)-70DS-0.4V(51)

MPNDF40HC(3.0)-70DS-0.4V(51)
Active

Hirose DF40 series receptacle, center strip contacts, 70 positions, 0.40mm pitch, dual-row SMT, 3mm mated stacking height, gold contact finish.

$1.2160Ref. price · indicative, final on quote
DF40HC(3.0)-70DS-0.4V(51) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DF40HC(3.0)-70DS-0.4V(51) Technical Specifications
ParameterValue
SeriesDF40
MountingSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.114\" (2.90mm)
Mated stacking heights3mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
Contact finishGold
Rows2
Positions70
Contact finish thickness2.00µin (0.051µm)

Product details

Board-stacking selection: 70-position mezzanine receptacle at 0.40mm pitch

The Hirose DF40HC(3.0)-70DS-0.4V(51) is a 70-position receptacle from the DF40 series, designed for board-to-board mezzanine stacking. It uses a 0.016" (0.40mm) pitch in a dual-row layout, with center strip contacts that mate to the matching DF40 header. The connector is specified for a 3mm mated stacking height, which sets the board-to-board spacing in the assembly. Surface-mount termination and gold contact finish are standard for this member of the DF40 family.

What the 0.40mm pitch and 3mm stack height mean for your board

You'll need fine-line PCB capability to route traces between pads, and the via placement under the connector body must be planned early. The 70 positions on a dual-row layout give a high I/O count in a compact footprint, suited for dense signal interconnect between processor and memory or sensor boards.

Frequently asked questions

What is the mated stacking height of DF40HC-70DS?

The mated stacking height is 3mm when mated with the matching DF40 series header.

Is DF40HC(3.0)-70DS-0.4V(51) RoHS compliant?

Yes, it is ROHS3 Compliant per the manufacturer's specification.

Is DF40HC compatible with DF40 series headers?

Yes, this receptacle is designed to mate with the matching DF40 series header for a 3mm stacking height.

Where can I buy DF40HC(3.0)-70DS-0.4V(51) available via RFQ confirmation?

This part is active and quoted to order.
