Hirose DF40 series receptacle, center strip contacts, 90 positions, 0.016" (0.40mm) pitch, 2 rows, surface mount, gold contact finish 2.00µin, 3mm mated stacking height.
| Parameter | Value |
|---|---|
| Series | DF40 |
| Mounting | Surface Mount |
| Connector type | Receptacle, Center Strip Contacts |
| Height above board | 0.114\" (2.90mm) |
| Mated stacking heights | 3mm |
| Pitch | 0.016\" (0.40mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 90 |
| Contact finish thickness | 2.00µin (0.051µm) |

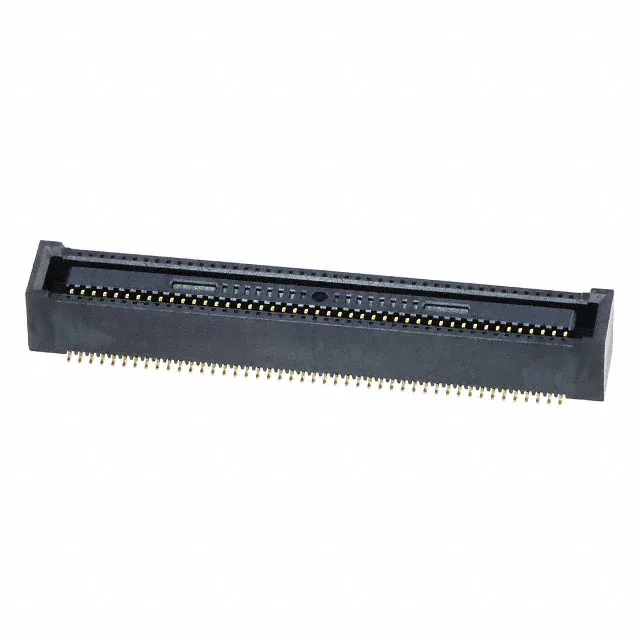

The Hirose DF40HC(3.0)-90DS-0.4V(51) is a 90-position receptacle from the DF40 series, built for board-to-board mezzanine stacking. It uses a 0.40mm pitch and a 2-row layout, with center strip contacts that keep the signal path short between stacked PCBs.
The mated stacking height is 3mm. This is the board-to-board gap when the receptacle is mated with its matching header, and it determines the z-height clearance in your enclosure.
