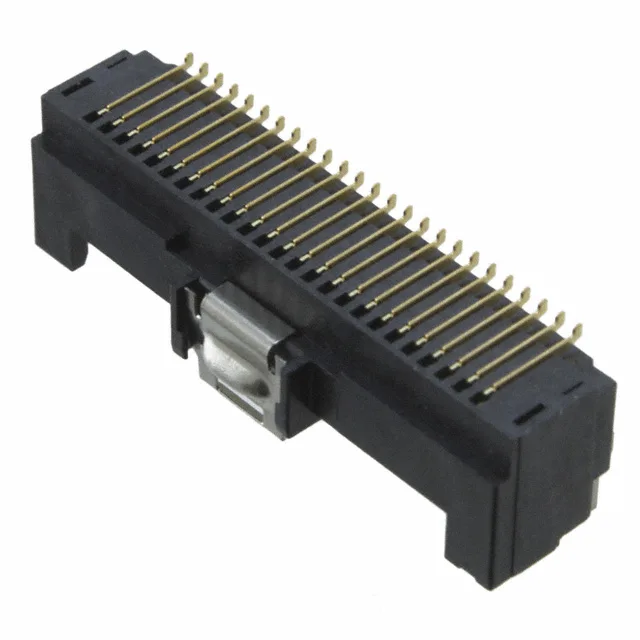

Hirose Electric Co Ltd DF50-50DP-1H(76)
MPNDF50-50DP-1H(76)
Last Buy
$3.9091Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DF50 |
| Type | Male Blade |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 100V |
| Current rating | 1A |
| Operating temperature | -35°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.354\" (9.00mm) |
| Insulation material | Polyester |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Rows | 2 |
| Pitch | 0.039\" (1.00mm) |
| Positions | 50 |
| Contact finish - mating | Gold |
