Hirose Electric Co Ltd DF5A-10DS-5C

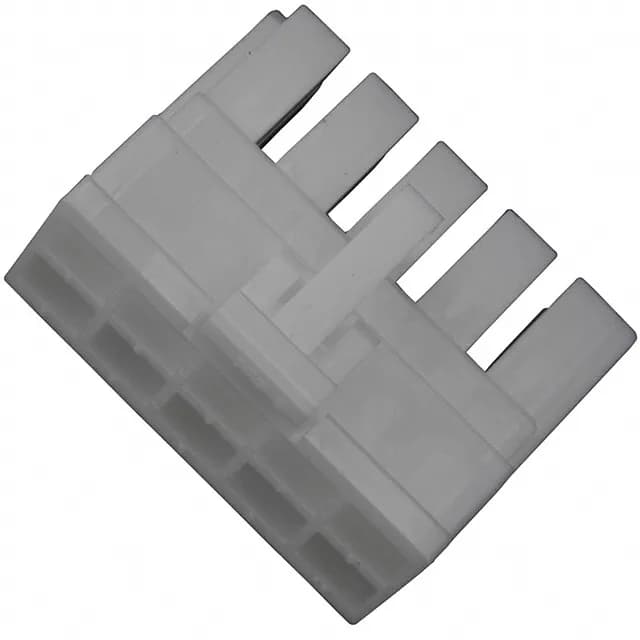

Hirose DF5A-10DS-5C Receptacle Housing, 10 Pos, 5.00mm

MPN DF5A-10DS-5C
Active

Hirose DF5 series receptacle housing, DF5A-10DS-5C, 10 positions, 2 rows, 5.00mm pitch, 5.00mm row spacing, latch lock, white polyamide, free-hanging, crimp termination, contacts not included.

$0.4800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesDF5
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

DF5A-10DS-5C specifications
ParameterValue
SeriesDF5
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-35°C ~ 85°C
ColorWhite
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.197\" (5.00mm)
PackageBulk
Row spacing0.197\" (5.00mm)
Rows2
Contact terminationCrimp
Positions10

Product details

5.00 mm Pitch, 10-Position Receptacle Housing for DF5 Series

It uses a 5.00 mm pitch with matching 5.00 mm row spacing, giving it a wide footprint that suits power or signal harnesses where creepage and clearance are a concern. Operating temperature range is -35°C to 85°C, making it suitable for indoor industrial equipment and automotive interior applications where extreme heat is not present.

This is standard for Hirose DF5 housings; the same applies to the 16-position DF5A-16DS-5C and the single-row 10-position DF5A-10S-5C. The latch lock on this 2-row version provides a more secure mate than the latch holder on the 6-position DF5A-6DS-5C, which uses a different fastening type.
