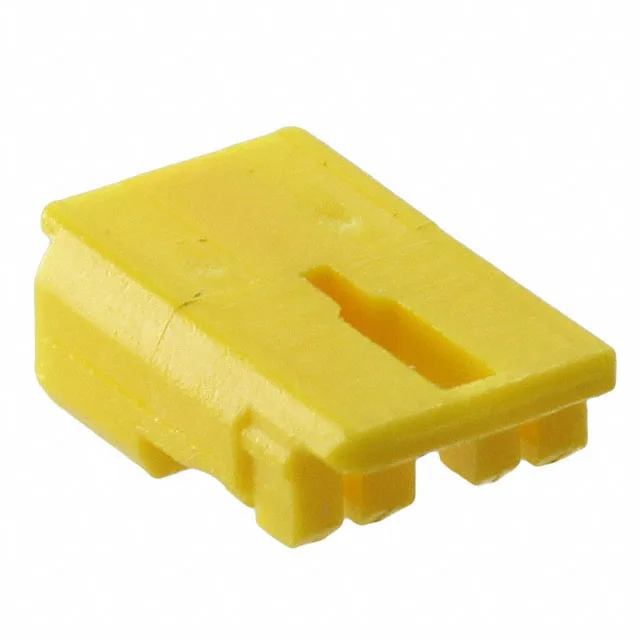

Hirose Electric Co Ltd DF61-2S-2.2C(12) — Connector Housings
Hirose Electric Co Ltd

Hirose DF61-2S-2.2C(12) Socket Housing, 2 Pos, 2.20mm

MPNDF61-2S-2.2C(12)
Active

Hirose DF61 series, Socket Housing, 2 Positions, 0.087" (2.20mm) Pitch, 1 Row, Free Hanging (In-Line), Crimp Termination, Yellow, Swing Lock

$0.4400Ref. price · indicative, final on quote
DF61-2S-2.2C(12) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DF61-2S-2.2C(12) Technical Specifications
ParameterValue
SeriesDF61
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeSocket
Fastening typeSwing Lock
Operating temperature-55°C ~ 105°C
ColorYellow
Insulation materialPolybutylene Terephthalate (PBT)
NoteContacts Not Included
Pitch0.087\" (2.20mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions2

Product details

Hirose DF61-2S-2.2C(12) — 2-Position Socket Housing, Yellow, Swing Lock

The Hirose DF61-2S-2.2C(12) is a 2-position socket housing from the DF61 series, designed for free-hanging (in-line) wire-to-wire or wire-to-board connections. It uses a 2.20 mm pitch and a single row layout, with a yellow polybutylene terephthalate (PBT) insulation body.

What the 2.20 mm Pitch and Swing Lock Mean for Your Harness

The 2.20 mm pitch leaves space between contacts for the crimp barrel and wire insulation. The swing lock is a one-piece plastic latch that pivots over the mating header.

This housing ships without contacts.

Frequently asked questions

What is the mating connector for the DF61-2S-2.2C(12)?

The mating connector is a DF61 series 2-position pin header with a 2.20 mm pitch and a swing lock catch. Typical order codes include DF61-2P-2.2C (through-hole) or DF61-2P-2.2V(XX) (SMT). The socket housing's swing lock engages the header's latch surface for positive retention.

Where can I buy DF61-2S-2.2C(12)?

This part is sourced per RFQ against your BOM quantity.
