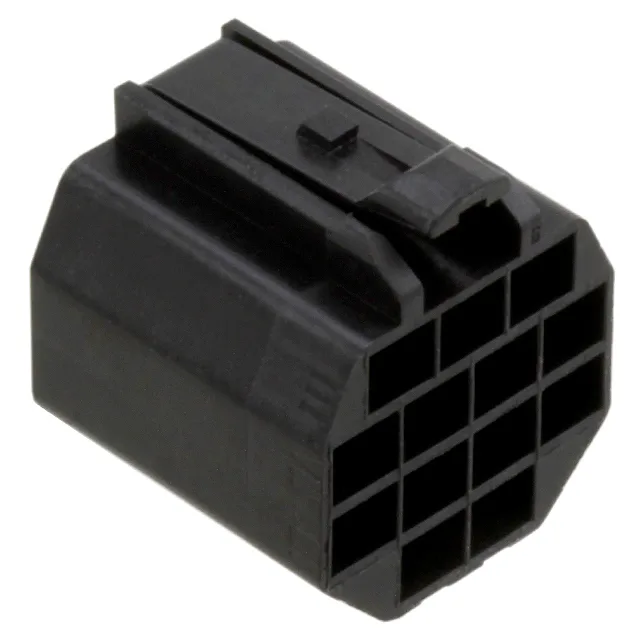

13-Position Free-Hanging Socket Housing
The Hirose DF62B-13S-2.2C(11) is a 13-position socket housing from the DF62 series, designed for free-hanging (in-line) wire-to-board or wire-to-wire connections. It uses a 2.20 mm pitch with a 2.00 mm row spacing across 4 rows, giving you a compact but organized layout for routing 13 circuits. Operating temperature spans -35°C to 105°C, covering underhood and cabinet environments.
Contacts Must Be Ordered Separately
The crimp termination gives you flexibility to build custom cable lengths and wire bundles, but don't forget to add the terminals to your BOM.
Mating Plug and Keying
This socket housing mates with the corresponding DF62 series pin header (plug) of the same 13-position count and 2.20 mm pitch. The 4-row arrangement and keyed geometry prevent misalignment during mating; the housing is designed so you can't insert it backwards or into the wrong plug.
