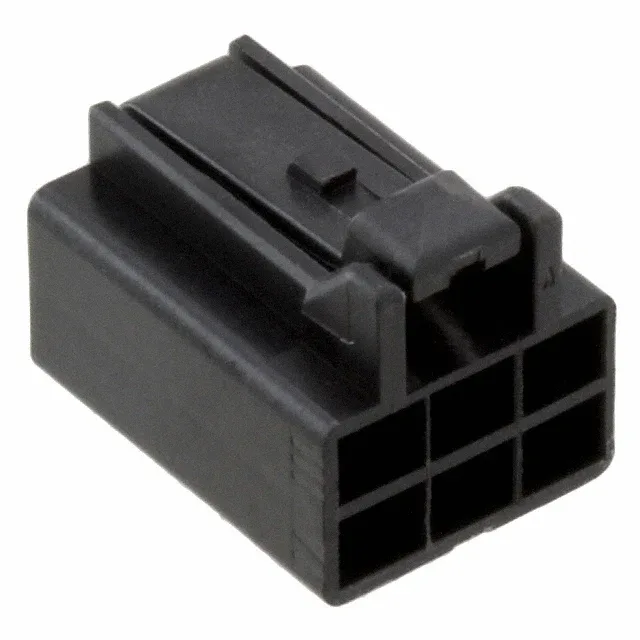

The Hirose DF62C-6S-2.2C(11) is a 6-position socket housing from the DF62 series, built for wire-to-board interconnects at a 2.20mm pitch. It accepts female crimp terminals and latches to the mating pin header with a latch lock — the click tells you it's home. Two rows at 0.079" (2.00mm) row spacing give it a compact footprint for a 6-circuit run. The critical note: contacts are not included. This is a housing only — you order the crimp socket terminals separately. A buyer who stocks only the housing and expects a finished connector will have a line-down moment. The PBT insulation handles -35°C to 105°C, good for automotive cabin, industrial control cabinets, and consumer appliances where the connector stays inside the enclosure.
Position Count and Pitch — the BOM Match
Six positions at 2.20mm pitch.
This socket housing mates with the corresponding DF62 pin header (male pins, same 2.20mm pitch). For a harness that gets plugged and unplugged in the field, that latch saves service calls.
Sourcing This Housing
It's ROHS3 compliant. No official direct replacement on record, but the DF62B-6S-2.2C(11) is a functional peer with the same pitch, position count, and termination — the 'B' vs 'C' suffix likely reflects a material or packaging variant.
