Hirose Electric Co Ltd DF9-41S-1V(69) — Mezzanine & Stacking Connectors
Hirose Electric Co Ltd

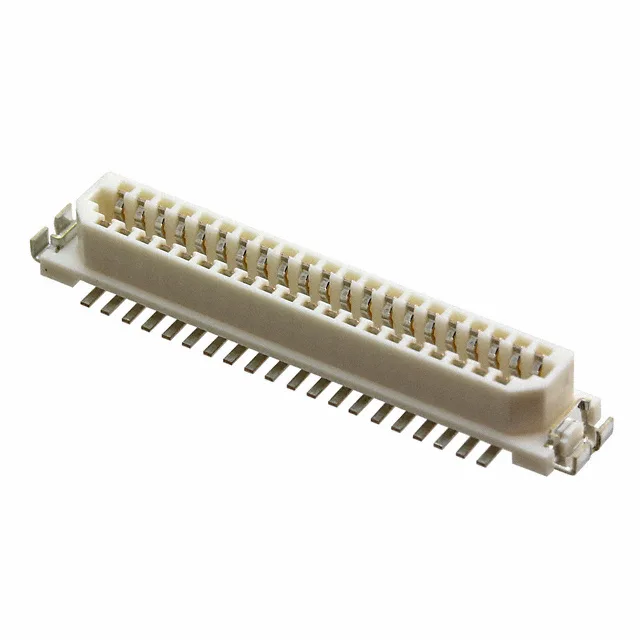

Hirose DF9-41S-1V(69) Receptacle, 41 Pos, 1.00mm Pitch, SMT

MPNDF9-41S-1V(69)
Active

Hirose DF9 series, 41-position receptacle, 1.00mm pitch, dual-row, SMT, gold-plated contacts, 4.3mm mated stacking height.

$2.6500Ref. price · indicative, final on quote
StockIn Stock (14)
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DF9-41S-1V(69) Technical Specifications
ParameterValue
SeriesDF9
MountingSurface Mount
Connector typeReceptacle, Outer Shroud Contacts
Height above board0.130\" (3.30mm)
Mated stacking heights4.3mm
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide, Solder Retention
Contact finishGold
Rows2
Positions41
Contact finish thickness8.00µin (0.203µm)

Product details

41-Position, 1.00mm Pitch Board-to-Board Receptacle

The Hirose DF9-41S-1V(69) is a 41-position receptacle with outer shroud contacts, part of the DF9 series of board-to-board connectors. Surface-mount termination with integrated board guides and solder retention features aids alignment during reflow and holds the connector in place through the solder process.

4.3mm Stacking Height — Z-Axis Fit

This dimension is fixed by the connector design and is not adjustable — the board-to-board spacing in the enclosure must accommodate this 4.3mm gap. The DF9-41S-1V(69) mates with the DF9-41P-1V(69) header, which shares the same 1.00mm pitch and 41-position count. For a higher position count, the DF9-51S-1V(69) offers 51 positions at the same pitch and stacking height, but with a longer footprint.

Frequently asked questions

Where can I buy DF9-41S-1V(69) and how do I get a price?

DF9-41S-1V(69) is sourced to order through independent distribution.

What is the mated stacking height of DF9-41S-1V(69)?

The mated stacking height is 4.3mm. This is the fixed z-axis spacing between the two PCBs when the receptacle is mated with its matching header.

Is DF9-41S-1V(69) RoHS compliant?

Yes, the DF9-41S-1V(69) is RoHS compliant.
