Hirose Electric Co Ltd DH-27-CT1B

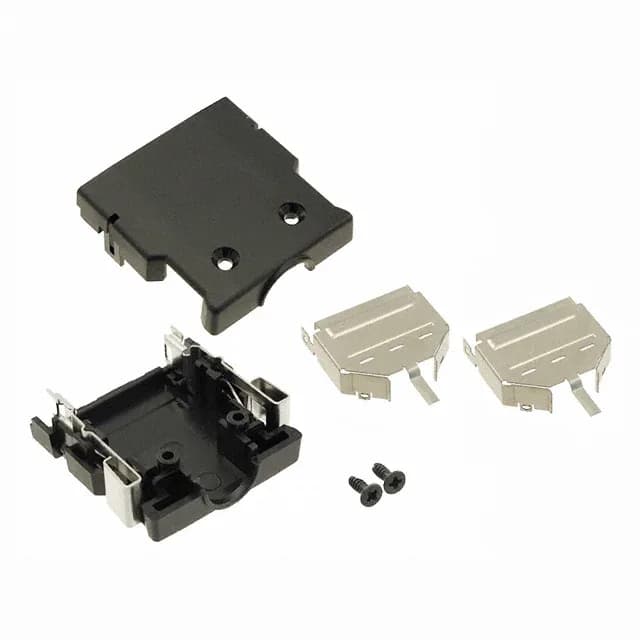

Hirose DH-27-CT1B Backshell, 27 Pos, Shielded, 180° Exit

MPN DH-27-CT1B
Active

Hirose DH series, two-piece backshell and cover, 27 positions, shielded metal shell, 180° cable exit, latch lock and spring lock, assembly hardware included, tray package.

$4.4400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesDH
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

DH-27-CT1B specifications
ParameterValue
SeriesDH
Cable typeRound
Accessory typeTwo Piece Backshell and Cover
Cable exit180°
ColorBlack
MaterialMetal Shell, Steel/Plastic Cover
Primary materialMetal
PackageTray
FeaturesLatch Lock, Spring Lock
HardwareAssembly Hardware
ShieldingShielded
Positions27

Product details

The Hirose DH-27-CT1B is a two-piece backshell and cover for the DH series of circular connectors, designed to terminate a shielded round cable at a 180° straight exit. It accommodates a 27-position connector and provides a metal shell with a steel/plastic cover for EMI containment and mechanical protection. The latch lock and spring lock secure the backshell halves together and to the mating connector housing, making it suited for industrial equipment, test instrumentation, and data-communication gear where cable shielding must be maintained through the connector interface.

Shielding and Locking — What Matters for the Assembly

The shielded metal shell means this backshell is the right choice when the cable shield needs to be terminated at the connector — common in environments with radiated EMI or when the signal integrity requirements call for a continuous ground path from cable braid through the connector to the panel. The latch lock and spring lock hold the two halves together without separate hardware, which saves assembly time and prevents the cover from loosening under vibration. Assembly hardware is included, so no additional fasteners are needed for the cable clamp or strain relief.

Cable Exit and Position Count — Fit Check

The 27-position count matches the Hirose DH-27 plug or receptacle — confirm the mating connector has the same position count before specifying. The round cable type is the intended cable form; flat or ribbon cable would not seat properly in the circular clamp.
