Hirose Electric Co Ltd DN10-36S(70)
MPNDN10-36S(70)
Active

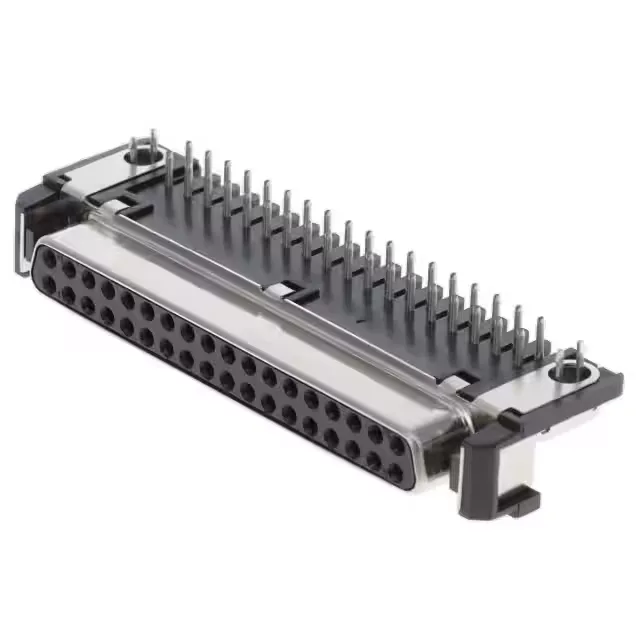

CONN D-TYPE RCPT 36POS T/H R/A
$13.93Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDN
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DN |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 200VAC |
| Current rating | 3A |
| Shell size, connector layout | 0.100 Pitch x 0.100 Row to Row |
| Color | Black |
| Contact material | Phosphor Bronze |
| Primary material | Metal |
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Aluminum, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 36 |
| Contact finish thickness | 11.8µin (0.30µm) |
