Hirose Electric Co Ltd DX20M-36S(50) — Centronics Connectors
Hirose Electric Co Ltd

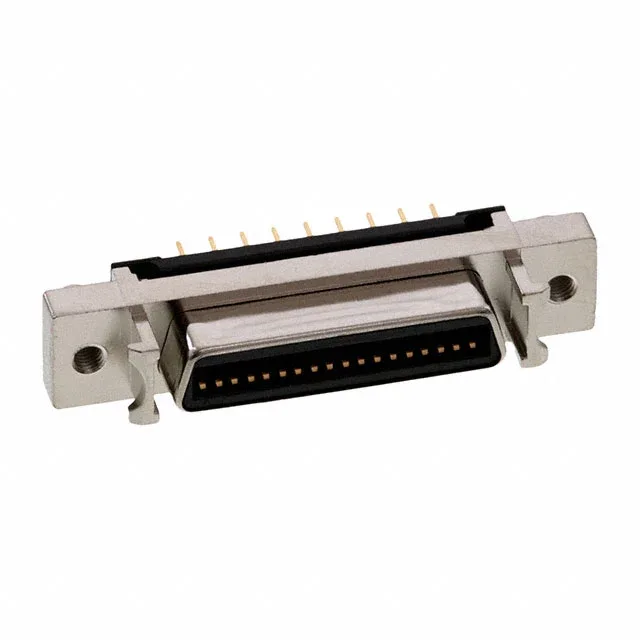

Hirose DX20M-36S(50) Mini HD Receptacle, 36 Pos, Gold

MPNDX20M-36S(50)
Active

Hirose DXM series Miniature High Density (HD) receptacle, DX20M-36S(50), 36 positions, 2 rows, gold contacts, panel mount with M2.6 flange, solder termination.

$11.3500Ref. price · indicative, final on quote
DX20M-36S(50) datasheet
StockIn Stock (24)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DX20M-36S(50) Technical Specifications
ParameterValue
TypeMiniature High Density (HD)
SeriesDXM
MountingPanel Mount, Through Hole
Connector typeOuter Shroud Contacts
PackageTray
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (M2.6)
Rows2
Positions36

Product details

Miniature High Density (HD) Receptacle, 36 Positions

The Hirose DX20M-36S(50) is a 36-position receptacle from the DXM series, classified as a Miniature High Density (HD) connector. It packs 36 circuits into a 2-row arrangement, using an outer shroud contact style typical of compact D-subminiature footprints. A housing/shell flange with M2.6 threaded holes provides a positive panel-mount lock, so the connector stays put under cable strain without relying solely on the PCB solder joints.

Termination is solder — through-hole to the PCB — with the connector body also panel-mounted via the M2.6 flange. The dual mounting (panel screws plus PCB solder) means the mechanical load from the mating cable goes into the panel, not the board. The 2-row, 36-position layout uses a standard high-density D-sub footprint; the outer shroud contacts align with the mating plug before the pins engage.

Frequently asked questions

What is the mating connector for DX20M-36S(50)?

The DX20M-36S(50) is a receptacle with outer shroud contacts, so it mates with the corresponding DXM series plug (male) connector. The M2.6 flange pattern on the receptacle aligns with the mating plug's hardware for panel-mount securement.

Is DX20M-36S(50) RoHS compliant?

Yes, it is rated ROHS3 Compliant.
