Hirose Electric Co Ltd DX30AM-14P

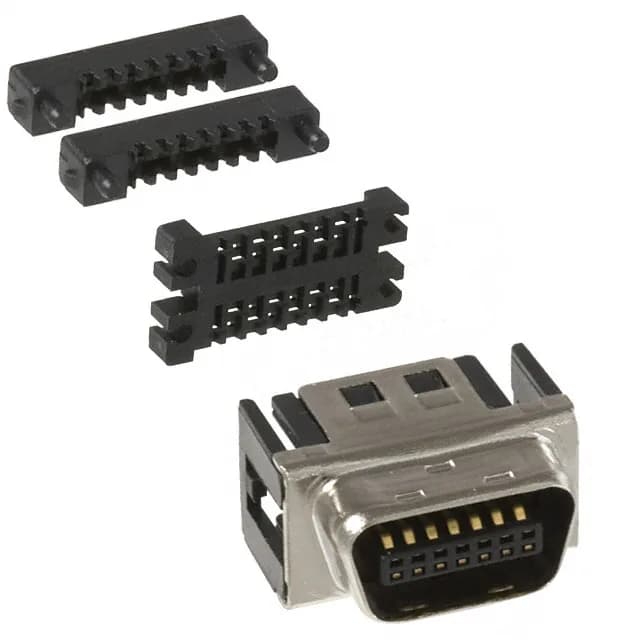

Hirose DX30AM-14P Mini HD Plug, 14-Pos IDC, Gold

MPN DX30AM-14P
Active

Hirose DXM series Miniature High Density (HD) plug, 14 positions, 2 rows, IDC termination, free-hanging, gold contacts.

$10.0400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesDXM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

DX30AM-14P specifications
ParameterValue
TypeMiniature High Density (HD)
SeriesDXM
MountingFree Hanging (In-Line)
Connector typeCenter Strip Contacts
PackageTray
TerminationIDC
Contact finishGold
Rows2
Positions14

Product details

Gold-plated contacts on both rows give it a corrosion-resistant mating surface suited for repeated connect-disconnect cycles in instrumentation and control cabling. The center strip contact layout keeps the signal path straight through the plug body — a design choice that reduces skew in parallel data lines.

The free-hanging mount (no PCB footprint) lets this plug terminate directly into a cable harness and mate with a board-mounted or panel-mounted receptacle.

The DX30AM-14P is Active and RoHS compliant — no last-time-buy window, no phase-out notice.
