Hirose Electric Co Ltd DX30AM-20P

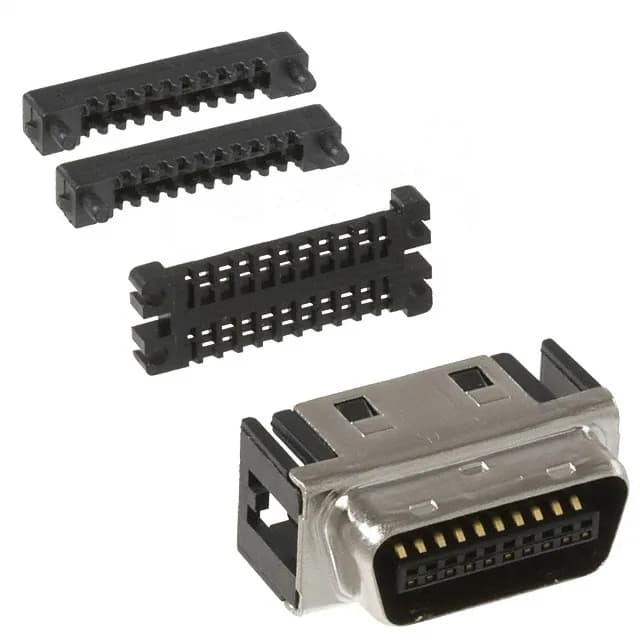

Hirose DX30AM-20P DXM Series Mini HD IDC Plug, 20 Pos

MPN DX30AM-20P
Active

Hirose DXM series Miniature High Density (HD) IDC plug, DX30AM-20P, 20 positions, 2 rows, gold contact finish, free hanging (in-line) mounting, center strip contacts.

$9.0400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesDXM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

DX30AM-20P specifications
ParameterValue
TypeMiniature High Density (HD)
SeriesDXM
MountingFree Hanging (In-Line)
Connector typeCenter Strip Contacts
PackageTray
TerminationIDC
Contact finishGold
Rows2
Positions20

Product details

20-Position Mini HD IDC Plug for Ribbon Cable Harnesses

The Hirose DX30AM-20P is a 20-position, 2-row Miniature High Density (HD) IDC plug from the DXM series. It terminates to ribbon cable via IDC — no individual crimp contacts, just one press with the right tool.

IDC Termination — One-Press Cable Assembly

IDC termination cuts assembly time — the ribbon cable is laid across the contacts and the press forces the insulation-displacing tines through the jacket. No wire stripping, no crimp dies. The 20-position, 2-row layout matches standard 0.050-inch pitch ribbon cable, common in internal equipment harnesses. Gold contacts resist oxidation in low-current signal paths where tin would frett.

Active Production — No Lifecycle Risk

MPN
DX30AM-20P
