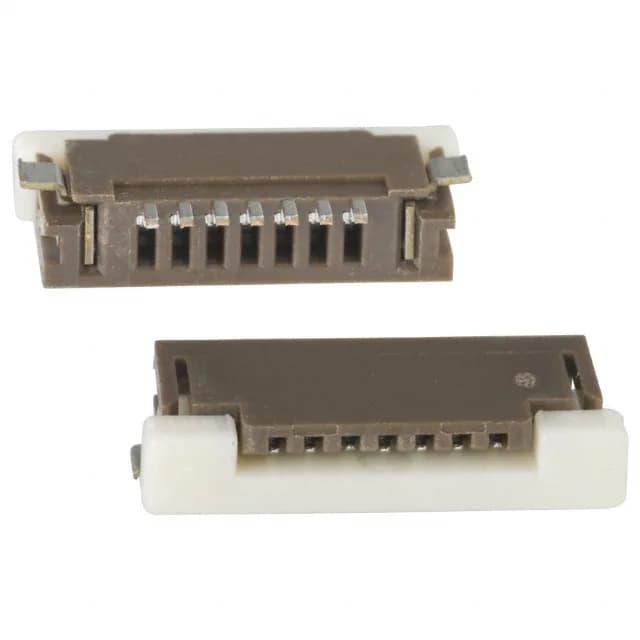

Hirose Electric Co Ltd FH10A-7S-1SHB
MPNFH10A-7S-1SHB
Obsolete
$0.8200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FH10A |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -55°C ~ 85°C |
| Housing color | Natural |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT) |
| Height above board | 0.118\" (3.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tube |
| Features | Board Guide, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Solder Plating |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 7 |
