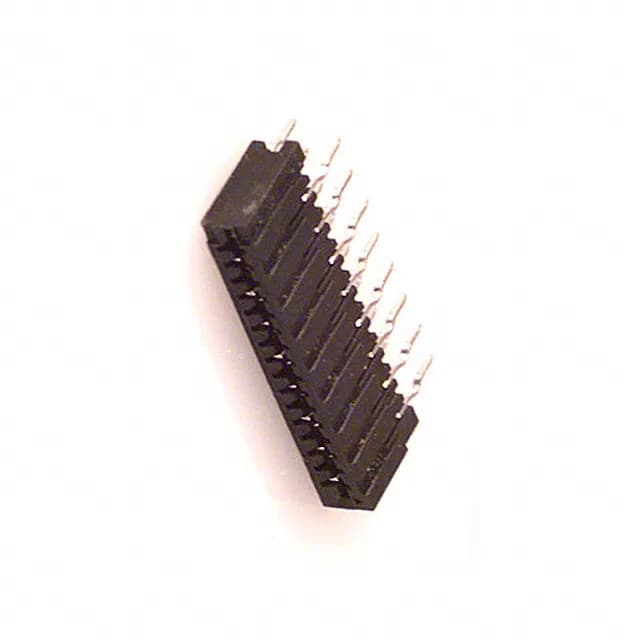

Hirose Electric Co Ltd FH21-16S-1DSA
MPNFH21-16S-1DSA
Obsolete
$0.3240Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FH21 |
| Mounting | Through Hole |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 2 Sided |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -30°C ~ 70°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT) |
| Height above board | 0.228\" (5.80mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Bulk |
| Features | Low Insertion Force (LIF) |
| Termination | Kinked Pin |
| Mating cycles | 10 |
| Contact finish | Solder Plating |
| FFC, FCB thickness | 0.30mm |
| Positions | 16 |
