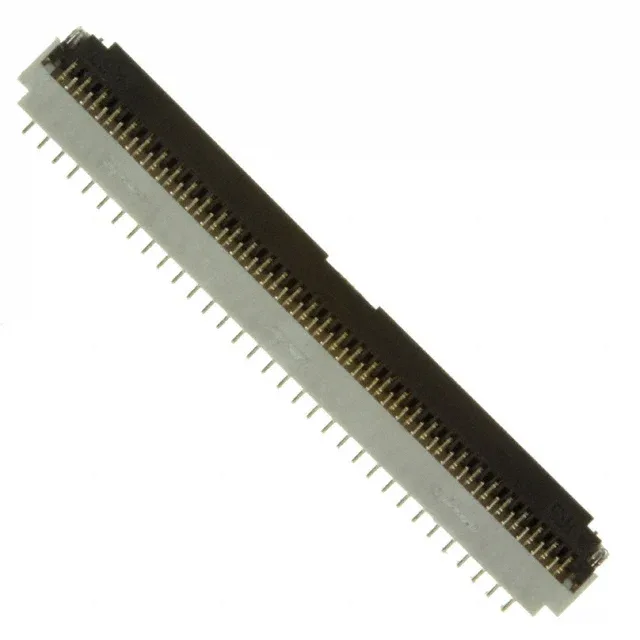

Hirose Electric Co Ltd FH26G-67S-0.3SHBW(05)
MPNFH26G-67S-0.3SHBW(05)
Active
CONN FPC BOTTOM 67POS 0.3MM R/A
$1.4968Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFH26
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FH26 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 30V |
| Current rating | 0.2A |
| Operating temperature | -55°C ~ 85°C |
| Housing color | Beige |
| Actuator color | Brown |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Polyamide (PA), Nylon |
| Height above board | 0.039\" (1.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.012\" (0.30mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Gold |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 67 |
| Contact finish thickness | 2.00µin (0.051µm) |
