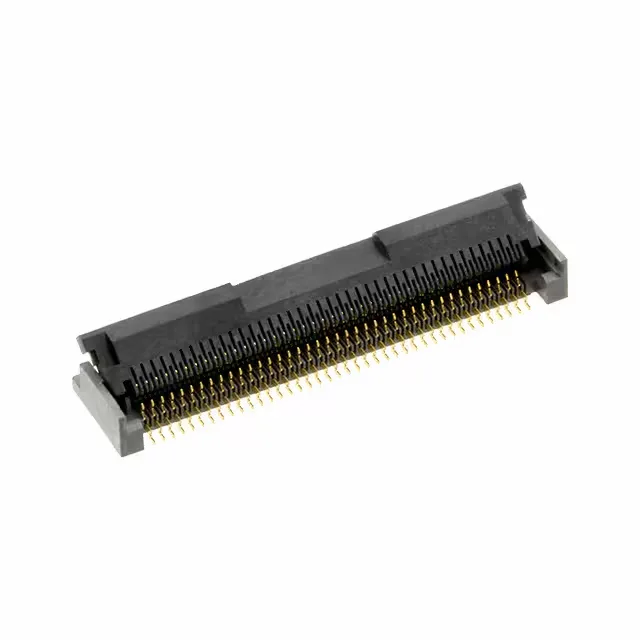

Hirose Electric Co Ltd FH30-80S-0.3SHW(05)
MPNFH30-80S-0.3SHW(05)
Active
CONN FPC BOTTOM 80POS 0.30MM R/A
$5.7300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFH30
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FH30 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tabbed |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Current rating | 0.15A |
| Operating temperature | -40°C~85°C |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP), Halogen Free |
| Height above board | 0.118\" (3.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.012\" (0.30mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Rotary Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 80 |
