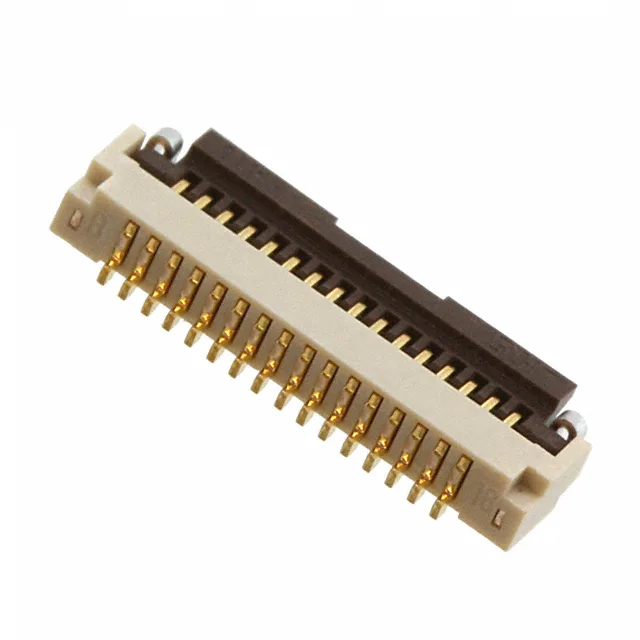

Hirose Electric Co Ltd FH33M-16S-0.4SH(10)
MPNFH33M-16S-0.4SH(10)
Active
CONN FFC BOTTOM 16POS 0.4MM R/A
$1.5500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFH33M
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FH33M |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 40V |
| Current rating | 0.4A |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP) |
| Actuator material | Polyamide (PA), Nylon |
| Height above board | 0.047\" (1.20mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.016\" (0.40mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 16 |
| Contact finish thickness | Flash |
