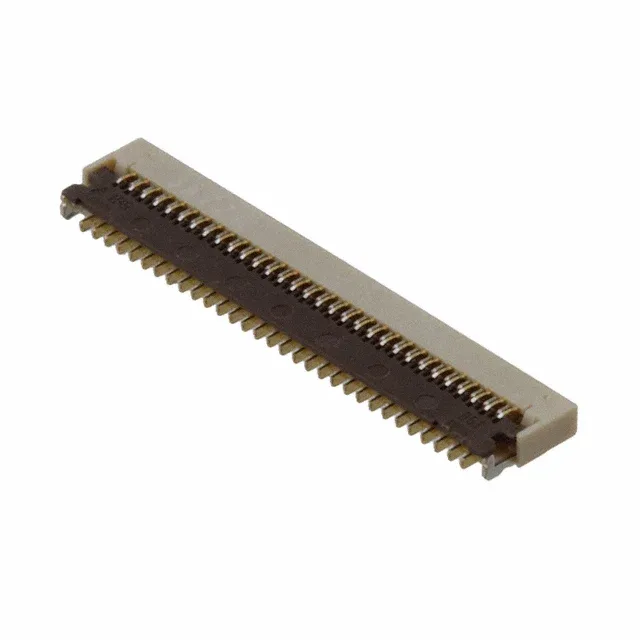

Hirose Electric Co Ltd FH43BW-61S-0.2SHW(10)
MPNFH43BW-61S-0.2SHW(10)
Active
CONN FPC 61POS .2MM
$1.7857Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFH43B
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FH43B |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tabbed |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 30V |
| Current rating | 0.2A |
| Operating temperature | -55°C~85°C |
| Housing color | Beige |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP), Halogen Free |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Polyamide (PA), Nylon, Halogen Free |
| Height above board | 0.035\" (0.88mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.008\" (0.20mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 10 |
| Contact finish | Gold |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 61 |
| Contact finish thickness | 1.97µin (0.050µm) |
