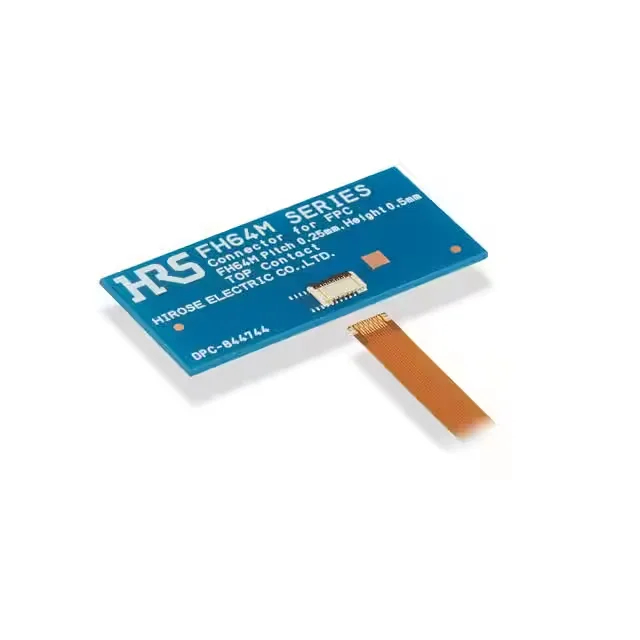

Hirose Electric Co Ltd FH64MA-5S-0.25SHW(99)
MPNFH64MA-5S-0.25SHW(99)
Active
CONN FPC 0.25MM SMD R/A 5POS
$3.7600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFH64MA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FH64MA |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Notched |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 30V |
| Current rating | 0.2A |
| Operating temperature | -55°C~85°C |
| Housing color | Beige |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Polyamide (PA), Nylon |
| Height above board | 0.020\" (0.50mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.010\" (0.25mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 10 |
| Contact finish | Gold |
| Locking feature | Flip Lock, Backlock |
| FFC, FCB thickness | 0.12mm |
| Positions | 5 |
| Contact finish thickness | 1.25µin (0.03µm) |
