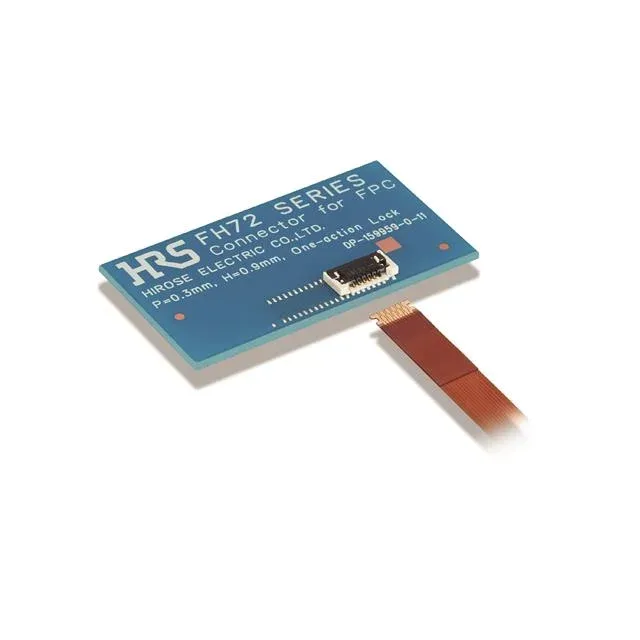

Hirose Electric Co Ltd FH72-15S-0.3SHW(99)
MPNFH72-15S-0.3SHW(99)
Active
CONN FPC 0.3MM SMD 15POS
$1.8800Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFH72
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FH72 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Notched |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 30V |
| Current rating | 0.3A |
| Operating temperature | -55°C~85°C |
| Housing color | Beige |
| Actuator color | Black |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Polyamide (PA), Nylon |
| Height above board | 0.035\" (0.90mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.012\" (0.30mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Termination | Solder |
| Mating cycles | 10 |
| Contact finish | Gold |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 15 |
| Contact finish thickness | 1.25µin (0.03µm) |
