Hirose Electric Co Ltd FX10A-96P-SV1(71) — Mezzanine & Stacking Connectors
Hirose Electric Co Ltd

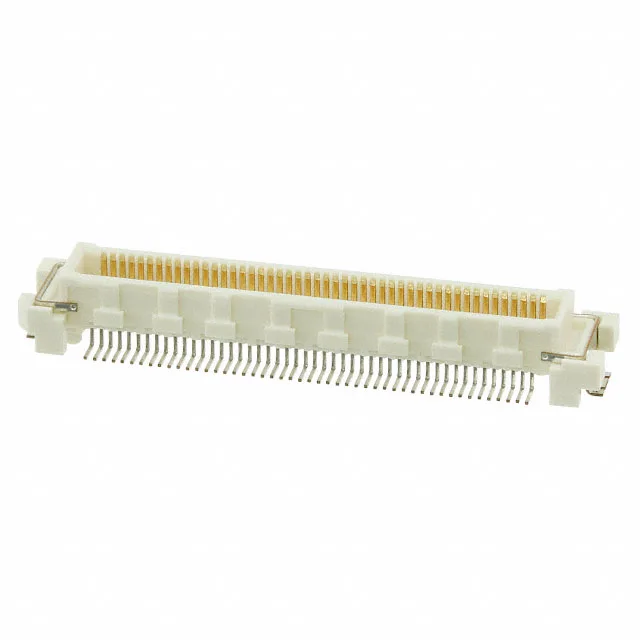

Hirose FX10A-96P-SV1(71) Header, 96 Pos, 0.50mm Pitch

MPNFX10A-96P-SV1(71)
Active

Hirose FunctionMax FX10 series header, outer shroud contacts, 96 positions, 2 rows, 0.020" (0.50mm) pitch, surface mount, gold plating, 0.177" (4.50mm) height above board, 5mm mated stacking height, tray.

$4.8700Ref. price · indicative, final on quote
FX10A-96P-SV1(71) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

FX10A-96P-SV1(71) Technical Specifications
ParameterValue
SeriesFunctionMax™ FX10
MountingSurface Mount
Connector typeHeader, Outer Shroud Contacts
Height above board0.177\" (4.50mm)
Mated stacking heights5mm
Pitch0.020\" (0.50mm)
PackageTray
FeaturesBoard Guide, Solder Retention
Contact finishGold
Rows2
Positions96
Contact finish thickness4.00µin (0.100µm)

Product details

0.50mm Pitch Mezzanine Header, 96 Positions, 5mm Stack Height

The mated stack height is fixed at 5mm, set by the header height of 0.177" (4.50mm) above the board plus the matching receptacle's height.

Position and Stack Height Options in the FX10 Series

The FX10A-96P-SV1(71) shares the same 0.50mm pitch, dual-row layout, and gold plating as the FX10A-144P-SV1(71), but the 96-position count is the key difference — 96 circuits vs 144 circuits, which changes the board footprint width and the routing density required. The stack height also varies: this part mates at 5mm, while the FX10A-96P-SV(71) (without the "1" suffix) mates at 3.50mm. The 5mm stack gives more room for mid-board components under the mezzanine, but the 3.50mm version is a tighter fit for low-profile enclosures. Both are active and use the same receptacle family, so the choice comes down to the z-height budget and the number of signals.

Frequently asked questions

Where can I buy FX10A-96P-SV1(71) and what is the lead time?

FX10A-96P-SV1(71) is sourced to order through independent distribution. Submit an RFQ for current pricing and lead time — availability is confirmed at quote time. No stock-holding claim is made; the supply posture is quoted per BOM quantity.

What is the mating receptacle for FX10A-96P-SV1(71)?

The FX10A-96P-SV1(71) mates with the matching FX10 series receptacle (typically an FX10A-xxS-SV type) that has the same 96 positions and 0.50mm pitch. The mated stack height is 5mm, so the receptacle must be selected to achieve that height. Confirm the receptacle part number against the Hirose FX10 series documentation for exact compatibility.
