Hirose Electric Co Ltd FX10A-96P-SV(71) — Mezzanine & Stacking Connectors
Hirose Electric Co Ltd

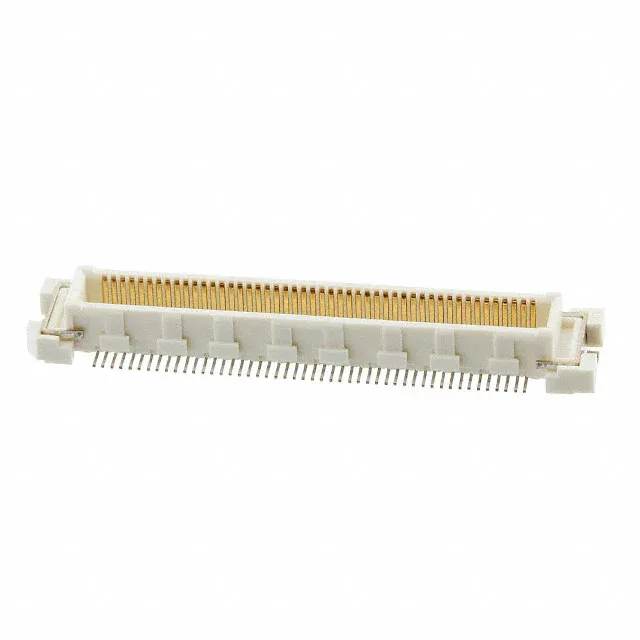

Hirose FX10A-96P-SV(71) Header, 96 Pos, 0.50mm Pitch

MPNFX10A-96P-SV(71)
Active

Hirose FunctionMax™ FX10 header, outer shroud contacts, 96 positions, 2 rows, 0.020" (0.50mm) pitch, surface mount, gold 4.00µin contacts, 0.138" (3.50mm) board height, 4mm mated stack height, tray.

$4.8700Ref. price · indicative, final on quote
FX10A-96P-SV(71) datasheet
StockIn Stock (27)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

FX10A-96P-SV(71) Technical Specifications
ParameterValue
SeriesFunctionMax™ FX10
MountingSurface Mount
Connector typeHeader, Outer Shroud Contacts
Height above board0.138\" (3.50mm)
Mated stacking heights4mm
Pitch0.020\" (0.50mm)
PackageTray
FeaturesBoard Guide, Solder Retention
Contact finishGold
Rows2
Positions96
Contact finish thickness4.00µin (0.100µm)

Product details

96-Position Mezzanine Header, 0.50mm Pitch, 4mm Stack

It uses a 0.020" (0.50mm) pitch in a 2-row layout, with outer shroud contacts that guide the mating receptacle and protect the contact beams during engagement. The mated stack height is 4mm, and the board-mounted height sits at 0.138" (3.50mm) — both numbers define the z-axis clearance between parallel PCBs.

96 vs 144 Positions — Same Footprint Class

The FX10A-96P-SV(71) carries 96 positions against the 144 of the FX10A-144P-SV(71) at the same 0.020" (0.50mm) pitch and 0.138" (3.50mm) board height. Both are 2-row surface-mount headers with outer shroud contacts and 4.00µin gold plating.

Mating Half and Stack Height Details

The mated stack height is 4mm — the distance between the two parallel PCBs when the pair is fully engaged.

Frequently asked questions

What is the mating connector for FX10A-96P-SV(71)?

The FX10A-96P-SV(71) mates with the matching FunctionMax™ FX10 receptacle housing of the same 96-position count and 0.50mm pitch. The mated pair achieves a 4mm stack height between the two PCBs.
