Hirose Electric Co Ltd FX2-20P-1.27DS(71) — Centronics Connectors
Hirose Electric Co Ltd

Hirose FX2-20P-1.27DS(71) 20-Pin Right-Angle Board-to-Board

MPNFX2-20P-1.27DS(71)
Active

Hirose FX2 series, 20-position board-to-board plug, 1.27 mm pitch, right-angle through-hole solder termination, gold-plated contacts, two rows, center strip contacts.

$3.4100Ref. price · indicative, final on quote
StockIn Stock (23)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

FX2-20P-1.27DS(71) Technical Specifications
ParameterValue
TypeBoard to Board
SeriesFX2
MountingThrough Hole, Right Angle
Connector typeCenter Strip Contacts
PackageTube
TerminationSolder
Contact finishGold
Rows2
Positions20

Product details

20-Position Right-Angle Plug for Parallel Board Stacking

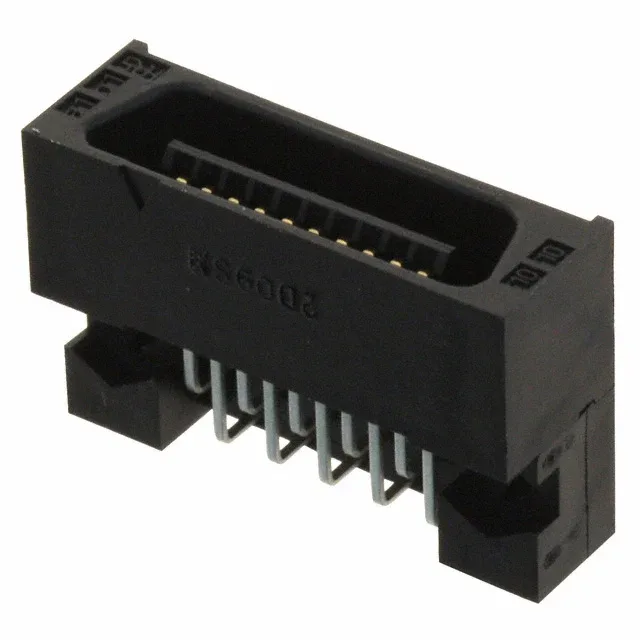

The Hirose FX2-20P-1.27DS(71) is a 20-position board-to-board plug from the FX2 series, designed for parallel PCB stacking with a 1.27 mm pitch between contacts. It uses a right-angle through-hole mounting orientation, so the plug sits perpendicular to the board edge — typical for mezzanine or card-edge applications where the mating receptacle comes in from the side.

Board-Lock Variant for Vibration Environments

The FX2-20P-1.27DSL(71) is the same 20-position, right-angle plug but adds board locks — metal tabs that solder into plated through-holes for extra shear-force retention. If your assembly sees vibration or the mating cable harness applies side load, the board-lock version keeps the connector from lifting pads during reflow or in service. The standard FX2-20P-1.27DS(71) relies on the signal-pin solder joints alone; for a fixed, low-vibration installation that is sufficient and avoids the extra footprint of the lock holes.

Frequently asked questions

Where can I buy FX2-20P-1.27DS(71) and get a price?

Submit a request with your target quantity for current pricing and availability confirmation at quote time.

What is the closest functional alternative to FX2-20P-1.27DS(71)?

The FX2-20P-1.27DSL(71) is the same 20-position right-angle plug with the addition of board locks for vibration retention. Otherwise identical in pitch, plating, and mating interface.
