Board-to-Board Plug for Parallel Stacking

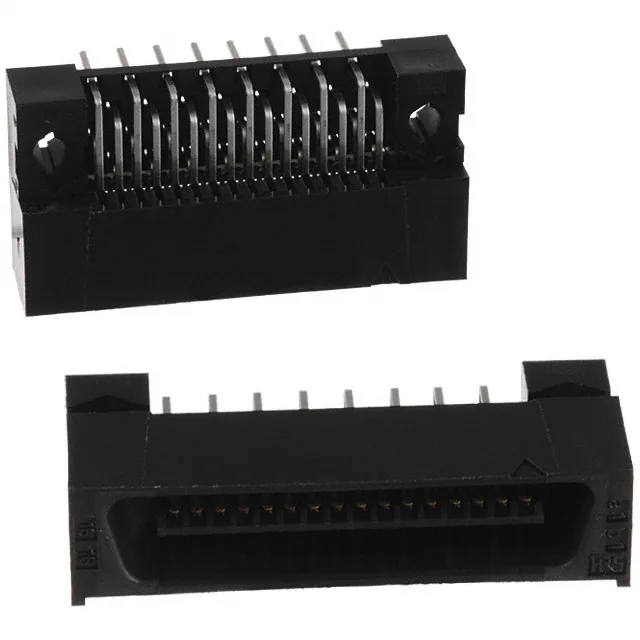

The Hirose FX2-32P-1.27DS(71) is a 32-position plug from the FX2 series of board-to-board connectors, designed for parallel PCB stacking with a 1.27 mm pitch.
Position Count and Pitch Drive the Footprint
With 32 positions across two rows, this plug defines a compact, high-density footprint. The right-angle solder tails exit the back of the connector, requiring a through-hole pattern that matches the pin-out exactly — confirm the hole diameter and pad spacing against the product drawing before committing the PCB.
The termination is solder — the right-angle through-hole pins are designed for wave or hand soldering. No crimp or press-fit option is available for this member; the board must have plated through-holes to accept the solder tails.
