40-Position Right-Angle Plug for Mezzanine Stacking

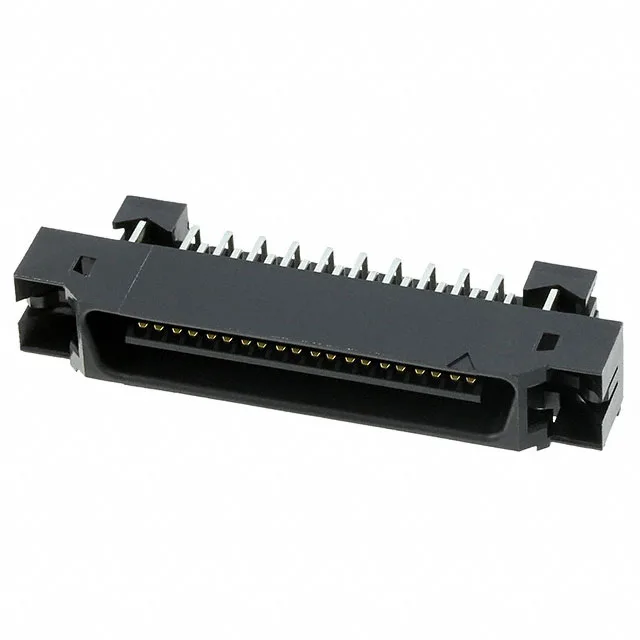

The Hirose FX2B-40PA-1.27DSL(71) is a 40-position board-to-board plug from the FX2 series, built for parallel PCB stacking with a 1.27 mm pitch that balances routing density against creepage for signal-level voltages.
Board Lock and Right-Angle Termination
The 2-row center strip contact arrangement is specific to the FX2 series and mates with the matching FX2 receptacle — the strip contacts are staggered to maintain signal integrity across the 40 positions.
Position Count Comparison: 40 vs 20 vs 52
