Hirose Electric Co Ltd FX2B-52PA-1.27DS(71) — Centronics Connectors
Hirose Electric Co Ltd

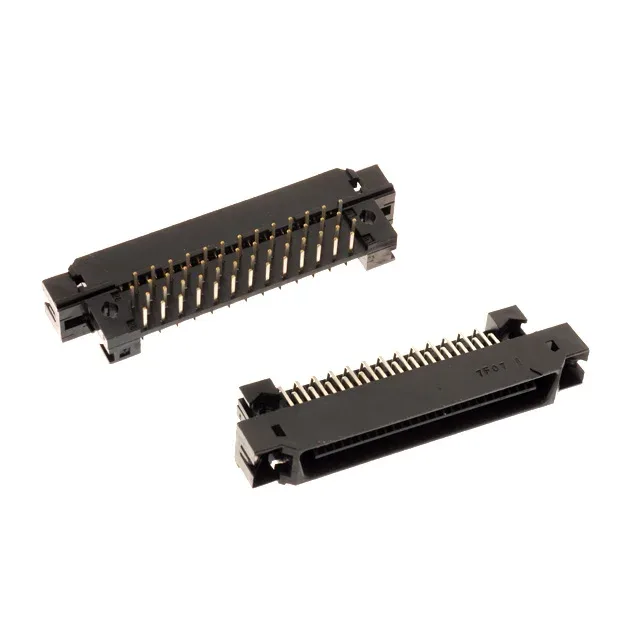

Hirose FX2B-52PA-1.27DS(71) Connector, 52-Pos, 1.27mm Pitch

MPNFX2B-52PA-1.27DS(71)
Active

Hirose FX2 series board-to-board plug, FX2B-52PA-1.27DS(71), 52 positions, 2 rows, 1.27 mm pitch, right-angle through-hole, solder termination, gold contacts.

$5.3800Ref. price · indicative, final on quote
StockIn Stock (19)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

FX2B-52PA-1.27DS(71) Technical Specifications
ParameterValue
TypeBoard to Board
SeriesFX2
MountingThrough Hole, Right Angle
Connector typeCenter Strip Contacts
PackageTray
TerminationSolder
Contact finishGold
Rows2
Positions52
Contact finish thickness7.87µin (0.200µm)

Product details

Hirose FX2B-52PA-1.27DS(71) — 52-Position Board-to-Board Plug

The Hirose FX2B-52PA-1.27DS(71) is a 52-position plug from the FX2 series, designed for board-to-board parallel stacking.

Right-Angle Through-Hole Mounting

This plug mounts through-hole, right-angle — the contacts exit the housing perpendicular to the PCB edge. That orientation is typical for a mezzanine card or a daughterboard that plugs into a backplane or midplane at the board edge. The solder tails go through plated holes, giving a stronger mechanical anchor than a surface-mount part would on a connector this long (52 positions).

Contacts are finished with 7.87 µin (0.200 µm) of gold over the base metal.

Frequently asked questions

Where can I buy FX2B-52PA-1.27DS(71) and how do I get a price?

Submit a request with your target quantity and we will confirm availability and current pricing from our distribution network.

What is the mating connector for FX2B-52PA-1.27DS(71)?

The FX2B-52PA-1.27DS(71) is a plug (male) from the Hirose FX2 series. It mates with a 52-position FX2 series receptacle (female) of the same pitch and row count. The mating half is typically a Hirose FX2 series board-to-board receptacle with 52 positions.

Is Hirose FX2B-52PA-1.27DS(71) through hole?

Yes, the FX2B-52PA-1.27DS(71) uses Through Hole, Right Angle mounting — the solder tails insert into plated through-holes on the PCB.

What is the pitch of FX2B-52PA-1.27DS(71)?

The pitch is 1.27 mm, center-to-center between adjacent contacts.
