60-Position Board-to-Board Receptacle at 1.27 mm Pitch

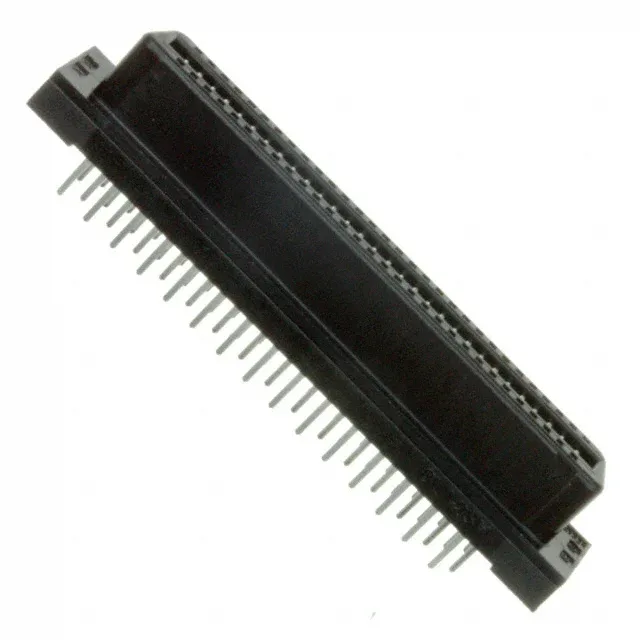

The Hirose FX2C-60S-1.27DSA(71) is a 60-position receptacle in the FX2 series, built for parallel board-to-board stacking. It uses a 1.27 mm pitch across two rows, with gold-plated contacts (7.87µin or 0.200µm thickness) on the mating interface. Through-hole solder termination keeps the connection mechanically stable on the PCB.
Through-Hole Mount and Dual-Row Layout
This receptacle mounts vertically through-hole, so the solder tails pass through the board and are wave-soldered. The two-row arrangement with 60 positions means 30 contacts per row, which gives a dense but routable footprint on a standard PCB.
The FX2C-60S-1.27DSA(71) mates with FX2 series pin headers that share the same 1.27 mm pitch and 60-position count. Confirm the header's stack height matches your board-to-board spacing before specifying the pair.
